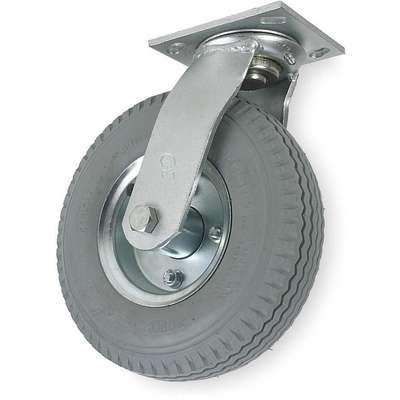

Light- Medium Duty, Swivel Plate Caster with Pneumatic Wheels; 350 lb. Load Rating, 10-5/8" Wheel Dia.

Hover over image to magnify
Swivl Pneumatic Caster,10 In.,
PI_Asset_947818
Swivl Pneumatic Caster,10 In.,
PI_Asset_947818

#917848-2 | Pkg Qty: 1

$46.31 pkg | $46.31 ea
Plate Caster Sub-Type : Swivel

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
1ULH7
Caster Brake Included
No
Mounting Bolt Diameter
3/8 in.
Caster Brake Type
No Brake Included
Mounting Height
11-7/8 in.
Caster Load Rating Range
Light- Medium Duty
Non-Marking
No
Caster Plate Hole Pattern
B
Number of Mounting Holes
4
Caster Plate Size
4 in. x 4-1/2 in.
Number of Wheels
1
Caster Raceway
Double Ball
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Wheel Bearings
Precision Ball
Package Quantity
1
Caster Wheel/Tread Material
Rubber
Plate Caster Sub-Type
Swivel
Caster/Wheel Tread
Sawtooth
Shipping Weight
7.4 lb.
Frame Finish
Zinc Plated
Swivel Construction
Kingpin
Frame Material
Steel
Wheel Color
Gray
Includes Thread Guards
Yes
Wheel Diameter
10-5/8 in.
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel Width
3-1/4 in.
Item
Plate Caster with Pneumatic Wheels
Wheel/Tread Hardness Rating
Soft
Load Rating
350 lb.
General
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4-1/2 in (B)
Caster Product Group
Swivel Caster
Raceway
Double Ball
Caster Temp. Range Available
No
Sub-Category
Swivel Caster
Hub Materials
Steel
Swivel Raceway Type
Double Ball
Hub Position
Symmetrical
Tire Rim Dia.
4 7/8 in
Hub Width
3-13/16"
Tire Thickness
2 1/2 in
Load Rating Range
300 to 999 lb
Wheel Bearing Type
Precision Ball
Mounting Bolt Dia.
3/8 in
Wheel Dia.
10 5/8 in
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Material
Rubber
Mounting Plate Size
4 in x 4-1/2 in

Product Description

Medium-duty pneumatic plate casters have zinc-plated steel frames and lightweight wheels with air-filled tires. These casters cushion loads against shock and vibration, and they have double ball swivels that allow them to swivel smoothly. Pneumatic wheels puncture more easily than semipneumatic and flat-free wheels, and they require maintenance to keep the wheels' tires filled to the correct air pressure. They are suitable for use in areas where they will not encounter sharp debris. These casters can be used on carts, trucks, and similar equipment in locations such as warehouses, transportation facilities, lawn and garden centers, and hospitality sites.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
