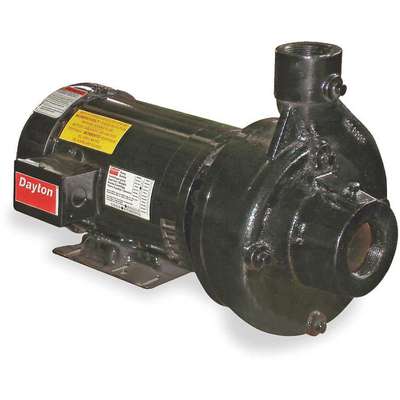

208 to 240/480VAC Totally Enclosed Fan-Cooled Straight Center Discharge Pump, 3-Phase, 2" NPT Inlet

208 to 240/480VAC Totally Enclosed Fan-Cooled Straight Center Discharge Pump, 3-Phase, 2" NPT Inlet

#917832-4 | Pkg Qty: 1

$1,108.80 pkg | $1,108.80 ea
Item Number 917832-4
Scanner Description Discharge Pump,2 Hp,5.6-5.2/2.
Inventory Status Drop Ship Item
Weight 104 lb
Brand DAYTON

Technical Specifications

Agency Compliance
UL Approval in Motor
Maximum Head
63 ft.
Amps
5.6-5.2/2.6
Maximum Liquid Temperature
200° F
Application
For High volume service, for industrial and commercial applications, such as process applications, dewatering, irrigation,chemical transfer, decorative water features.
Maximum Pressure
27 psi
Bearing Type
Double Sealed Ball
Maximum Specific Gravity
1
Best Efficiency GPM @ Head
101 @48
Mfr. Part Number
12A054
Best Efficiency Range GPM @ Head
83 to 120 gpm @ 53 to 41 ft.
Minimum GPM @ Head
93 gpm @ 50 ft.
Brand
DAYTON
Motor Enclosure
TEFC
Discharge Pressure
Straight Center Discharge Pump
Motor RPM
3450
Drain Plug
4 Position
Motor Type
3 - Phase
Duty
Continuous
NEMA/IEC Frame
145JM
For Use With
Nonflammable and Nonabrasive Liquids compatible with pump component materials
Outlet
1-1/2 in. NPT
Frame
145JM
Outlet Size
1-1/2 in. NPT
Height
16-1/2 in.
Pack Quantity
1
Horsepower
2
Phase
3
Housing Material
Cast Iron
Port Rotation
4 Position Increments
Hz
60
Screw Material
Zinc Plated
Impeller Material
Bronze
Seal Application
Nonflammable and Nonabrasive Liquids Compatible with Seal Component Materials
Impeller Type
Closed
Seal Material
Carbon Ceramic, NBR Elastomer, 304 Stainless Steel
Includes
Manual
Seal Type
Mechanical
Inlet
2 in. NPT
Service Factor
1-1/4
Inlet Pressure
100 psi
Shaft Material
Steel
Item
Straight Center Discharge Pump
Stages
Single
Length
18-1/4 in.
Standards
UL Approval in Motor
Manufacturers Warranty Length
1 yr.
Type
Straight Centrifugal
Maximum Case Pressure
200 psi
Voltage
208 to 240/480 VAC
Maximum Diameter Solids
15/ 32 in.
Volute Material
Cast Iron
Maximum Fluid Viscosity
100 SSU
Wetted Materials
Cast Iron, Bronze, Carbon, Ceramic, Buna N, Stainless Steel
Maximum GPM @ Head
163 @ 20 ft.
Width
10-1/4 in.

Product Description

Features replaceable case ring and easy-access housing drain plug. Does not have overload protection and requires a pump control box, sold separately. Replacement seals are also sold separately.
