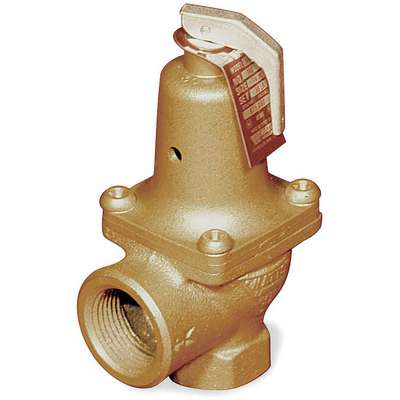

Bronze Safety Relief Valve, FNPT Inlet Type, FNPT Outlet Type

Bronze Safety Relief Valve, FNPT Inlet Type, FNPT Outlet Type

#917823-7 | Pkg Qty: 1

$81.82 pkg | $81.82 ea
Item Number 917823-7
Scanner Description Safety Relief Valve,3/4 In,30
Inventory Status Drop Ship Item
Weight 1.15 lb
Brand WATTS

Technical Specifications

Application
For Pressure Protection of Hot Water Heating Boilers
Outlet Size
3/4 in.
Body Material
Bronze
Outlet Type
FNPT
Brand
WATTS
Overall Height
5-1/8 in.
Connection Type
FNPT
Overall Length
2-1/2 in.
Inlet Size
3/4 in.
Pack Quantity
1
Inlet Type
FNPT
Standards
MILV-136-RD, Type III, Rating ASME. NB and HV
Item
Safety Relief Valve
Temperature Range (Deg. F)
Up to 250 deg. F
Mfr. Part Number
174 A-3/4"

Product Description

174A Series

  • Max. temp.: 250°F
  • Meet Mil. Spec. MIL-V-136-RD, Type III, as well as ASME, NB, and HV standards except Nos. 26X178 to 26X195 meet ASME Section IV only.
  • Relief Valves
  • Nonmechanical seat-to-disc alignment. FNPT connections, except No. 46A979 is union solder connection.
  • Pressure Relief
  • Max. temp.: 250°F
  • Drain seal eliminates water trapping and sediment fouling. Heat-resistant diaphragm isolates springs and working parts from water during release. Brass springs, Buna N disc.
