IDEAL

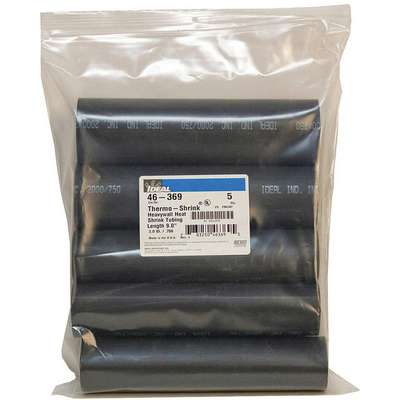

Ideal 9" Heavy Wall Heat Shrink Tubing Cross-Linked Polyolefin, Shrink Ratio 3:1
Hover over image to magnify
#917815-2 | Pkg Qty: 5
$168.35 pkg | $33.67 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
IDEAL
Shipping Weight
.93 lb.
Color Family
Black
Shrink Ratio
1899-12-31 03:01:00
Dielectric Strength
600 V
Shrink Temperature
248F
Flame Retardant
Yes
Shrink Tubing Adhesive Lined
No
Heat Shrink Tubing Shrink Ratio
3:1 Shrink Ratio
Shrink Tubing Inside Diameter Before Shrinking
2.000 in.
Inside Diameter After Shrinking
0.630 in.
Shrink Tubing Length
9 in.
Inside Diameter Before Shrinking
2.000 in.
Shrink Tubing Material
Cross-Linked Polyolefin
Inside Diameter Expanded Pre-Shrink
2 in.
Shrink Tubing Type
Heat Shrink Tubing
Item
Heat Shrink Tubing
Shrink Tubing Usable Temperature Range
-55 to 110F
Length
9 in.
Temperature Range
-55 deg. F to 110 deg. F
Material
Cross-Linked Polyolefin with Adhesive
Tube Material
TS-46 Irradiated Cross-Linked Polyolefin
Material of Construction
TS-46 Irradiated Cross-Linked Polyolefin
Use Shrink Tubing With Wire Size
250 to 750 kcmil
Maximum Voltage
600 V
Wall Thickness After Shrinking
0.160 in.
Mfr. Part Number
46-369
Wall Type
Heavy Wall
Minimum Shrink Temperature
248F
Width
8 in.
Package Quantity
5
Wire Range
250 to 750 kcmil
Resists
Common Fluids and Solvents
General
Adhesive Lined
Yes
Shrink Tubing Properties
Solvent Resistant, UV Light Resistant
Features
Flame Retardant
Shrink Tubing Wall Thickness After Shrinking
0.16 in
I.D. After Shrinking
0.63 in
Standards
Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guides Nos. 2.4, 2.5, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, ANSI C37.20.2, ICEA S-19-8 and NEMA Insulation Thickness Requirements
I.D. Before Shrinking
2 in
Tubing Flexibility
Semi Rigid
Package Style
Individual Pieces
Tubing Wall Type
Heavy Wall
Shrink Tubing I.D. Before Shrinking
2.0 in
Use With Wire Size
250 MCM to 500 MCM
Product Description
Flame retardant and adhesive-lined heat shrink tubing resists combustion and minimizes the spread of flames. It's used where hot conditions are present, such as in engine compartments. This tubing covers wire and cable and is heated to shrink the tubing and seal the adhesive.
Item Barcode
Shrink Tubing,2.0in Id,Black,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 29UJ97 | Shrink Tubing,2.0in |
 | UNSPSC CODES | 39121723 | |
 | VMRS (ATA) CODES | 053-006-009 | Shrink Tubing,2.0in |
