PIG

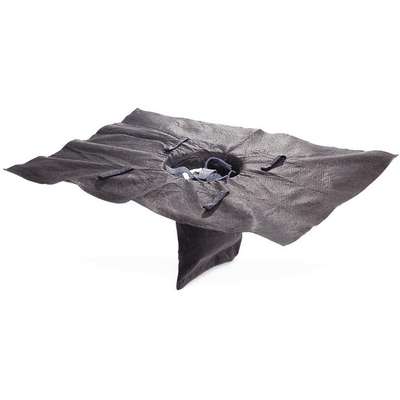

PIG Drain Insert; 3 ft. L x 4 ft. W, Removes: Oil, Sediment

Hover over image to magnify
Drain Insert,Gray,36 In. Lx48
Drain Insert,Gray,36 In. Lx48

#917788-7 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Drain Guard Plus,Oil &
$62.39 pkg | $62.39 ea
Item: 915654
Pkg Qty: 1
Framed Drain Guard,
$78.63 pkg | $78.63 ea
Item: 933662-5
Pkg Qty: 1
Storm Drain Filter,36 In L,48
$144.12 pkg | $144.12 ea
Item: 936930-7
Pkg Qty: 1

Technical Specifications

Key Specifications
Brand
PIG
Oil Capacity
1.38 gal.
Color Family
Gray
Opening Size
10 in. dia.
Item
Drain Insert
Package Quantity
1
Length
3 ft.
Removes
Oil, Sediment
Material
Polypropylene
Shipping Weight
2.15 lb.
Mfr. Part Number
FLT116
Width
4 ft.
General
Filter Material
Polypropylene
For Use With
Storm Drains
Filtration Capacity
Oil Capacity: 1.38 gal
Max. Flow Rate
500 gpm
Fits Drain Size
12 in x 12 in to 40 in x 36 in
Recycled Content (%)
100%
Fits Max Drain Size
40 in x 36 in
Replaceable Filter
No
Fits Min Drain Size
12 in x 12 in
Retaining Rods Required
FLT602
For Drain Type
Drain Insert
Substances Filtered
Debris, Oil, Sediment, Trash

Product Description

This PIG® Drain Insert Plus is an easy way to control oily runoff and sediment - and helps to avoid stormwater fines. Below-grate design stays intact in areas with high vehicle traffic. 18 in.-deep accumulation pocket collects oil, sediment, and other contaminants, but lets water flow through. Features 3 excess flow ports to prevent blockage during high water flow. Filter strips made from recycled fibers remove floating oil and other hydrocarbons. Trim excess fabric once grate is in place for neater appearance or leave untrimmed for easy maintenance. Ideal when you need to capture trash, sediment, silt, and hydrocarbons. Add strength and capacity by fitting heavy-duty retainer rods (sold separately) through attached loops.
