FINISH THOMPSON

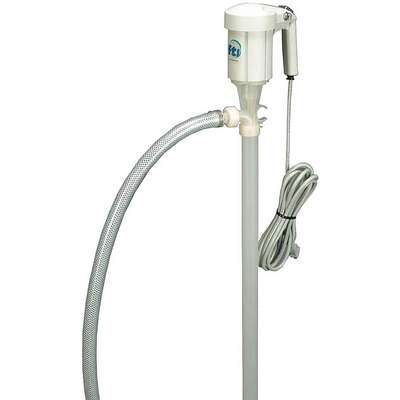

1/3HP Intake Tube Polypropylene / P VDF Electric Operated Drum Pump, 7 to 17 GPM, 6000 to 13,000 RPM
Hover over image to magnify
#917768-3 | Pkg Qty: 1
$689.39 pkg | $689.39 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action Type
Piston
Metered
No
Adapter Diameter
2 in.
Mfr. Part Number
EFV-40 & S1 Kit
Adapter Material
Polypropylene
Mfr. Warranty Length
1 yr.
Adapter Type
Bung
Motor Enclosure
ODP
Agency Compliance
CSA
Motor RPM
8000 to 14,000
Brand
FINISH THOMPSON
Motor Type
Universal AC
DEF Compatible
No
Outlet Size
3/4" Barb
Discharge Tube Length
5 ft.
Overall Length
49 in.
Discharge Tube Outlet ID Size
3/4"
Pack Quantity
1
Discharge Tube Outlet Outside Diameter
1"
Phase
1
Discharge Tubing Material
PVC
Plug Type
NEMA 5-15
Duty Cycle
Continuous
Power Source
Electric
Fits
2" Bung
RPM
6000 to 13,000
Food Grade
No
Seal
Fluoroelastomer
For Use On
55 gal. Drums and Totes
Seal Material
Fluoroelastomer
Full Load Amps
2
Self-Priming
Yes
GPM
7 to 17
Series
EF
Gasket Material
Shipping Weight
10.75 lb.
Height
40 in.
Suction Design
Intake Tube
Horsepower
1/3
Suction Tube Length
40 in.
Housing Material
Polypropylene / PVDF
Suction Tube Outlet Outside Diameter
1-1/4 in.
Hz
60
Suction Tube Type
Intake Tube
Inlet Size
1-1/4"
Thermal Protection
No
Item
Electric Operated Drum Pump
Type
Motor and Tube
Maximum Air Inlet PSI
8
Variable Speed
Yes
Maximum GPM for Oil
7
Voltage
115 VAC
Maximum GPM for Water
17
Voltage @ 50 Hz
115
Maximum Head
5 to 20 ft.
Voltage @ 60 Hz
115
Maximum Liquid Temperature
160°F
Wetted Materials
316 Stainless Steel and PVC, FKM, Polypropylene, PTFE, PVDF
Maximum Pressure
8 psi
pH Range
1 to 14
Maximum Viscosity
300 CPS
General
Application
Sodium Hypochlorite-Chlorine Bleach, Corrosive Chemicals
Includes Suction Tube
Yes
Bung Connection Dia.
2 in
Max. Flow Rate
17 gpm
Compatible Chemicals
Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Automatic Transmission Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fertilizers, Formic Acid, Fresh Water, Fungicides, Herbicides, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Phosphoric Acid (40% Solution), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%), Trichlorethylene (50%)
Max. Fluid Temp.
160 Degrees F
Discharge Connection Type
Hose Barb
Max. Head - Pumps
20 ft
Discharge Tube Outlet ID
3/4 in
Max. Head Pressure
8 psi
Discharge Tube Outlet OD
1 in
Max. Outlet Pressure
8 psi
For Container Size
55 gal
Min. Fluid Temp.
0 Degrees F
For Container Type
Drum
Noise Level
74 db
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Automatic Transmission Fluid, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Fertilizers, Formic Acid, Fungicides, Herbicides, Hydrochloric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sulfuric Acid, Trichlorethylene, Water
Nominal Voltage
110V AC
For Use With
Corrosive Chemicals, Sodium Hypochlorite-Chlorine Bleach
Not Recommended Chemicals
Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Biodiesel, Brake Fluid, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (Concentrated Solution), Paint Thinner, Potassium Hydroxide (50%), Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Turpentine, Windshield Washer Fluid, Xylene
Frequency (Hz)
60
Number of Phases
1
Height Above Container
8 5/8 in
Pump Connection Type
Smooth Bore
Hose Inside Dia.
3/4 in
Pump Package Type
Basic Pump with Discharge Hose
Hose Outside Dia.
1 in
Rated Voltage
115V AC
Hose Tube Material
PVC
Standards
CSA Certified
Housing Material - Pumps
Polypropylene, PVDF
Suction Tube ID
1 1/4 in
Includes
Clamp, Hose, Motor, Pump
Suction Tube Material
Polypropylene
Includes Discharge Hose
Yes
Suction Tube OD
1 1/4 in
Product Description
Acid, base, and solvent electric drum pumps are made with corrosion-resistant materials that withstand a range of acidic and basic chemical concentrations. They are used to dispense and transfer moderate to large volumes of substances and solutions in laboratories and chemical processing plants.
Documents
Item Barcode
Drum Pump,115VAC,1/3 Hp,60 Hz
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5FZU7 | Drum Pump, 115VAC,1/3 |
 | UNSPSC CODES | 40151529 | |
 | VMRS (ATA) CODES | 053-011-004 | Drum Pump, 115VAC,1/3 |
