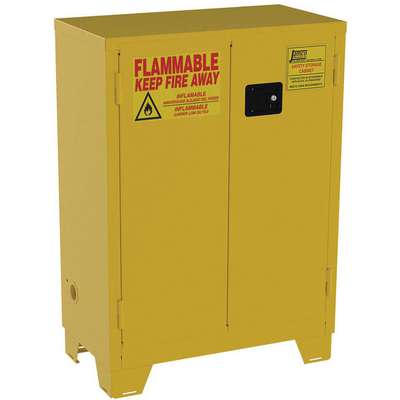

28 gal. Flammable Cabinet, 49" x 34" x 18", Manual Door Type

Zoom Icon

28 gal. Flammable Cabinet, 49" x 34" x 18", Manual Door Type

#917727-9 | Pkg Qty: 1
$926.00 pkg | $926.00 ea
Item Number 917727-9
Scanner Description Flammable Safety Cabinet,28
Inventory Status Drop Ship Item
Weight 213 lb
Brand JAMCO

Technical Specifications

Additional Shelf
GS134
Material
Galvanized Steel
Brand
JAMCO
Mfg Part Number
FM28YP
Cabinet Height Range
Counter Height
Mounting Type
Standard
Capacity - Safety Storage
28 gal.
Number of Doors
2
Color
Yellow
Number of Shelves
2
Depth
18 in.
Pack Quantity
1
Door Opening Height
38-3/4 in.
Primary Color Family
Yellow
Door Opening Width
31-1/16 in.
Rated Flammable Storage
Yes
Door Type
Manual
Safety Cabinet Style
Standard with Legs
Finish
Powder Coated
Safety Storage Application
Flammable Cabinet
Height
49 in.
Standards
OSHA, NFPA Code 30, FM, UFC 79
Includes
All Welded Double Wall 18 ga. Construction with 1-1/2 in. Insulating Air Space, 2 in. Leakproof Sill to Contain Leaks, Lockable Flush Mounted Handle with 2 Keys, Door Has 3 Point Locking System and Radius Edges, Door is Double Walled (14 ga. Outside and 18 ga. Inside), 4 in. Heavy Duty Weld Hinges with Brass Pins, Galvanized Steel Shelves Adjust On 2-1/2 in. Centers, Twin 2 in. Flame Arrester Vents, 4 in. High Legs Allow Moving Unit with Forklift Truck, Safety Signage In Large Red Letters, Grounding Connector, Manual Close Doors Open to A Full 180°, Chemical Storage Maximum is Class I and II 60 gal. and Class III 120 gal.
Storage Type
Flammable and Hazardous Materials
Item
Flammable Liquid Safety Cabinet
Sump Capacity
4.49 gal.
Key Lock Type
Paddle Latch
Width
34 in.

Product Description

Cabinet is easily identified for storage of flammable liquids, with powder-coated yellow finish and safety signage in large red letters. Galvanized steel shelves adjust on 2-1/2" centers. Lockable flush-mounted handle with 2 keys. Welded 18-ga. construction with 14-ga. door front panels for greater protection. 4" high legs have bolt holes to secure to the floor.

NOTE: Self-closing doors are mandatory in some areas. Check local regulations to determine if this applies to your location.
