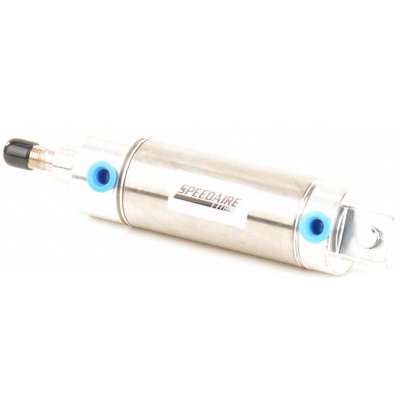

1-1/2" Air Cylinder Bore Dia. with 2" Stroke Stainless Steel , Nose and Pivot Mounted Air Cylinder
Hover over image to magnify
#917659-1 | Pkg Qty: 1
$76.34 pkg
| $76.34 ea
Technical Specifications
Key Specifications
Air Consumption
scfm
Dimension L
0.50 in.
Air Cylinder Mount
Nose and Pivot
Dimension N1
3/4 in.-16
Air Cylinder Type
Round Body
End Cap Material
Aluminum
Body Material
Stainless Steel
Features
Non-Switch Ready
Brand
SPEEDAIRE
Finish
Silver
Cushion Type
None
Item
Air Cylinder
Cylinder Action
Double Acting
Maximum Pressure
250 psi
Cylinder Ports
1/8 NPT
Mount
Nose and Pivot
Cylinder Type
Round Non-Repairable
Mounting Style
Pivot
Dimension A
0.75 in.
Overall Length
7-1/2 in.
Dimension B
0.749 in.
Pack Quantity
1
Dimension Cb
0.62 in.
Port Size
1/8 in. FNPT
Dimension Cc
0.437 in.
Shipping Weight
0.9 lb.
Dimension Cd
0.376 in.
Stroke
2 in.
Dimension D
0.38 in.
Tube Material
Stainless Steel
Dimension E
0.62 in.
Type
Double Acting
Dimension Kk
7/16 in.-20 UNF
General
Action Type
Double Acting
Piston Rod
Stainless Steel
Air Cylinder Bore Dia.
1 1/2 in
Piston Rod Material
Stainless Steel
Air Cylinder Product Group
Air Cylinder
Pivot Hole Dia.
0.376 in
Bore Dia.
1 1/2 in
Rod Dia.
0.437 in
End Caps
Aluminum
Rod Thread Length
0.75 in
Magnetic Piston
No
Rod Thread Size
7/16-20 UNF
Nose Mount Thread
3/4"-16
Single Acting/Double Acting
Double Acting
Product Description
Stainless Steel-Body Air Cylinders
- Max. operating pressure: 250 psi (17.23 bar) Operating temp. range: -10° to 165°F
- Designed to withstand a wide range of operating environments; to tolerate moisture and many types of lubricants and solvents. Use in applications where magnetic sensing piston is not required. Dimensionally interchangeable with Bimba, Parker, SMC, Norgren, and other major manufacturers' cylinders.
- Note: 6"-stroke models also available; see ImperialSupplies.com® for details.
