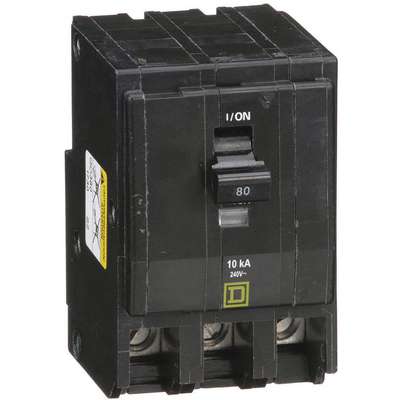

Plug In Circuit Breaker, QO, Number of Poles 3, 80 Amps, 240VAC, Standard



#917605-2 | Pkg Qty: 1
$384.00 pkg
| $384.00 ea
Item Number | 917605-2 |
Scanner Description | Circuit Breaker,80A,3P,10kA, |
Inventory Status | Drop Ship Item |
Weight | 1 lb |
Brand | SQUARE D |
Technical Specifications
AC Voltage Rating
240VAC
Maximum Air Rating
10 kA
Air @ 120 VAC
10kA
Maximum DC Voltage
48
Air @ 240 VAC
10kA
Maximum Wire Size
2/0
Air @ 48 VDC
5kA
Mfr. Part Number
QO380
Amperage
80
Minimum Wire Size
4 AWG
Amps
80
Number of Poles
3
Brand
SQUARE D
Pack Quantity
1
Circuit Breaker Type
Standard
Panelboard Mounting
Plug-In
DC Voltage Rating
48VDC
Phase
3
Depth
2.91 in.
Phase Connection
All
For Use With
QO Load Centers and NQOD Panelboards
Series
QO
Frame Size
100A/QO
Standards
UL Listed, CSA Certified, HACR
High Amp Trip Setting
108
Terminal Connection
Box Lug
Instantaneous Trip
Fixed
Type
Panelboard Mount
Item
Plug In Circuit Breaker
Voltage
240 VAC
Length
3-1/2 in.
Width
2-1/4 in.
Product Description
QO® (Plug-In) and QOB (Bolt-On) Circuit Breakers
- 120/240VAC Visi-Trip® indicator Standard and VH breakers are UL Listed as HACR type
- Qwik-Open® breakers are for use only with QO load centers and NQ and NQOD panelboards. QOB breakers are for use only with NQ or NQOD panelboards. Rated for aluminum and copper conductors.
