PHILIPS ADVANCE

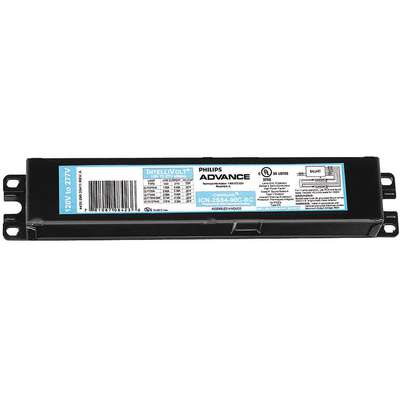

Philips Advance Electronic Ballast, 54 Max. Lamp Watts, 120-277 V, Programmed Start, No Dimming

Hover over image to magnify
Electronic Ballast,T5 Lamps,
PI_Asset_973920
Electronic Ballast,T5 Lamps,
PI_Asset_973920
Philips Advance Electronic Ballast, 54 Max. Lamp Watts, 120-277 V, Programmed Start, No Dimming Video
Philips Advance Electronic Ballast, 54 Max. Lamp Watts, 120-277 V, Programmed Start, No Dimming Video

#917596-1 | Pkg Qty: 1

$59.57 pkg | $59.57 ea

Unavailable

Shipping to 60045

Technical Specifications

Key Specifications
Amps AC
1.00 to 0.43
Lamp Watts
54 W
Ballast Family
Centium
Length
9-1/2 in.
Ballast Type
Electronic
Light Output
Normal
Brand
PHILIPS ADVANCE
Mfr. Part Number
ICN-2S54-90C-N
Dimming
No
Pack Quantity
1
Dimming Type
No Dimming
Shipping Weight
.85 lb.
Height
1 in.
Start Type
Programmed
Item
Fluorescent Ballast
Voltage
120/277
Lamp Type
T5 Lamps
Width
1-5/16 in.
General
Ballast Bulb Type
T5HO
Number of Bulbs Supported
1, 2
Ballast Factor
1
Number of F50BX Lamps
1 or 2
Ballast Start Type
Programmed
Number of F54T5 Lamps
1 or 2
Brand and Series
Centium(TM)
Number of F55BX Lamps
1 or 2
Dimming Method
No Dimming
Operating Amps @ 120V
1899-12-31 01:00:00
Dimming Range
No Dimming
Power Factor
0.98
Green Environmental
Product Contributes To Reducing Energy Consumption
Starter Required
No
Max. Bulb Watts
54 W
Total Harmonic Distortion
Less Than 10%
Min. Starting Temp.
-20 Degrees F
Wiring Type
Series

Product Description

Electronic Ballasts

  • Provide energy savings of up to 25% vs. magnetic models. RoHS compliant. Ballast Family Centium® NEMA Premium® instant-start ballasts are suitable for applications that do not have frequent switching cycles. Optanium® NEMA Premium® high-efficiency instant-start and programmed-start models feature lamp striation circuitry. Instant-start models feature lamp auto-restrike circuitry and cold-start capacity to -20°F when operating standard 17, 25, or 32W lamps. IOP instant-start models also feature the UL Type CC rating. (IOPA models do not have UL Type CC rating.) AmbiStar™ Compact design fits most fixtures and works with most incandescent dimmers. Quiet, flicker-free performance is great for most hospitality applications. Start Type Instant Fixtures with instant-start ballasts tend to come with factory-installed shunted sockets. Great for use when maximum energy savings are desired and when lamps are not switched frequently during normal operations. Lamps are wired in parallel. Rapid Rapid-start ballasts require nonshunted sockets. Great with frequent On/Off switching cycles. Programmed Premium starting method that affords optimal lamp life. Programmed-start ballasts require nonshunted sockets. Great for applications with frequent On/Off cycles. Light Output Ballast Factor (BF) Normal Typically 0.88 or 1.0 BF. High 1.15 to 1.25 BF.
