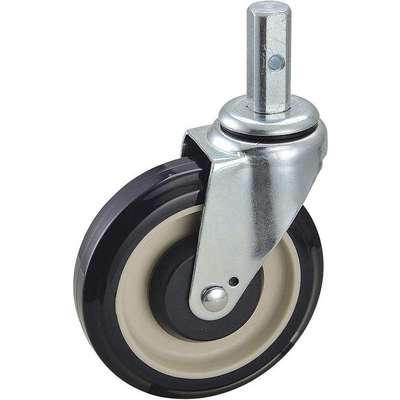

Light- Medium Duty, Swivel, Bolt-In Stem Caster; 350 lb. Load Rating, 5" Wheel Dia.

Hover over image to magnify
Swivel Stem Caster,5 In,350 Lb,
Swivel Stem Caster,5 In,350 Lb,

#917489-1 | Pkg Qty: 1

$19.54 pkg | $19.54 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
350 lb.
Caster Brake Included
No
Mfr. Part Number
5VN79
Caster Brake Type
No Brake Included
Mounting Height
5-7/8 in.
Caster Load Rating Range
Light- Medium Duty
Non-Marking
Yes
Caster Raceway
Double Ball
Number of Wheels
1
Caster Stem Type
Square
Overall Height
5-7/8 in.
Caster Sub-Type
Swivel
Package Quantity
1
Caster Wheel Bearings
Precision Ball
Shipping Weight
1.9 lb.
Caster Wheel/Tread Material
Polyurethane
Stem Diameter
3/4 in.
Core Color
Gray
Stem Length
1-3/4 in.
Core Material
Plastic
Wheel Color
Blue
Frame Finish
Zinc Plated
Wheel Diameter
5 in.
Frame Material
Steel
Wheel Width
1-1/4 in.
Item
Bolt-In Stem Caster
General
Application
Shopping Cart
Overall Height (In.)
5-7/8
Brake Type
No Brake Included
Raceway
Double Ball
Caster Frame Material
Steel
Stem Dia.
3/4 in
Caster Mounting Type
Stem
Stem Hole Dia.
1/4"
Caster Product Group
Swivel Caster
Stem Hole Location
1-1/8"
Caster Stem Size
3/4 in x 1-3/4 in
Swivel Raceway Type
Double Ball
Caster Temp. Range Available
Yes
Tread Shape
Standard
Features
5/16" dia. Axle with Lock Nut, Kingpin 1/2" Steel Rivet
Wheel Bearing Type
Precision Ball
Includes
Partial Thread Guard
Wheel Core Material
Plastic
Load Rating (Lb.)
350
Wheel Dia.
5 in
Load Rating Range
300 to 999 lb
Wheel Dia. (In.)
5
Operating Temperature Range
-40° to 180°F
Wheel/Tread Material
Polyurethane

Product Description

These bolt-in stem casters have a square stem that fits into structural framing made of square or octagonal metal tubing or angle iron. The casters have zinc-plated steel frames and double ball swivel bearings that allow the caster to swivel smoothly. These stem casters can be attached to carts, racks, and similar equipment that are built from structural framing. They are used in the maintenance, construction, and transportation industries.

These bolt-in stem casters have a round or square stem that fits into structural framing made of metal tubing or angle iron. They can be attached to scaffolding, racks, and carts built from structural framing to allow the equipment to roll as its being moved or repositioned, which reduces the effort required to move the equipment. In general, the shape and size of the stem determines the type of frame the caster will fit into, and bolts or pins are installed into cross-drilled mounting holes in the framing and the caster's stem to secure the caster in place on the framing.
