HUBBELL WIRING DEVICE-KELLEMS

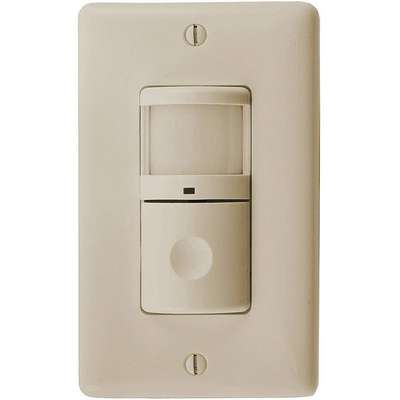

Wall Switch Box Hard Wired Occupancy Sensor, 1200 sq. ft. Passive Infrared, Ivory

Hover over image to magnify
Occupancy Sensor,Pir,1200 Sq
PI_Asset_1027561
Occupancy Sensor,Pir,1200 Sq
PI_Asset_1027561

#917455-5 | Pkg Qty: 1

$63.50 pkg | $63.50 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
HUBBELL WIRING DEVICE-KELLEMS
Pack Quantity
1
Coverage
1200 sq. ft.
Sensor Type
Passive Infrared
Installation Location
Wall Switch Box
Shipping Weight
.35 lb.
Item
Occupancy Sensor
Viewing Angle
180 deg.
Light Technology
Fluorescent, Incandescent, LED
Voltage
120 VAC
Mfr. Part Number
WS1000I
General
Communication Method - Motion Sensing and Dimming
Hard Wired
Operating Voltage - Motion Sensing and Dimming
120 V AC
Coverage Angle - Motion Sensor
180 Degrees
Sensing Technology
Passive Infrared
Coverage at Suggested Mounting Height
1,200 sq ft
Standards
cULus and CEC Title 24 Certified
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Suggested Mounting Height - Motion Sensor
3 ft 6 in to 4 ft 6 in
Green Environmental
Product Contributes To Reducing Energy Consumption
Time Delay - Motion Sensor
20 sec to 30 min
Includes
Nylon Wall Plate
Time Delay Adjustment Method - Motion Sensor
Manual
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent, LED)

Product Description

Replace a mechanical switch with this wall switch occupancy sensor to help reduce energy consumption. The sensor automatically turns lights off when occupants leave a room, making sure electricity isn't wasted in an unoccupied space. With adaptive technology, the sensor utilizes microprocessor-based technology to set adjustments according to seasonal changes, modified airflow, and furniture layout or occupancy pattern changes. Internal software constantly monitors the controlled area and automatically adjusts the sensitivity and timer based on environmental history. The sensor does not need a neutral, eliminating expense and time associated with dropping neutrals to switch locations.
