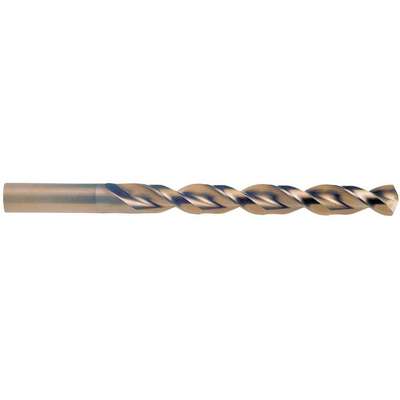

Cleveland Jobber Length Drill Bit: 1/4 in Drill Bit Size, 2 3/4 in Flute Lg, 4 in Overall Lg, Cobalt
#917391-7 | Pkg Qty: 1
$21.70 pkg | $21.70 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CLEVELAND
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
Cobalt
Cutting Direction
Right
List Number
2075
Cutting Direction
Right Hand
Maximum Drilling Depth
2 in.
Decimal Equivalent
1/4
Mfr. Part Number
C16567
Depth x Diameter Ratio
10xD
Number of Flutes
2
Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Dimension Type
Fractional Inch
Overall Length
4 in.
Drill Bit Finish
Straw/Bronze
Pack Quantity
1
Drill Bit Material
Cobalt Steel
Point Angle
135 deg.
Drill Bit Point Angle
135 deg.
Point Type
Split Point
Drill Bit Size
1/4 in.
Series
2075
Drill Letter Size
E
Shank Diameter
1/4 in.
Drill Point Length
0.0518 in.
Shank Length
1-1/4 in.
Flute Length
2-3/4 in.
Shank Type
Straight
Flute Type
Parabolic
Shipping Weight
0.04 lb.
Grade
High Performance
Spiral Direction
Right Hand
Helix Angle
35 to 45
General
Application
For Chilled Cast Iron, High Speed Steel, High-Strength Alloy Steel, Stainless Steel And Tool Steels
Finish - Machining
Straw/Bronze
Coolant Fed
Non-Coolant Through
Material - Machining
Cobalt
Depth:Dia. Ratio
10xD
Material Grade - Machining
M42
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Split Point
Primary Material Application ISO Code
K, M, N, P
Drill Diameter Tolerance
+0.0000 in /-0.0005 in
Shank Dia.
1/4 in
Drill Length Class
Jobber Length
Shank Type - Machining
Straight
Product Description
These drill bits have a straw/bronze finish that improves their wear resistance. Parabolic-flute drill bits have wide, deep flutes that improve chip flow and heat dissipation, which means feed rates do not need to be reduced as the drills move deeper into the workpiece.
