LEGRIS

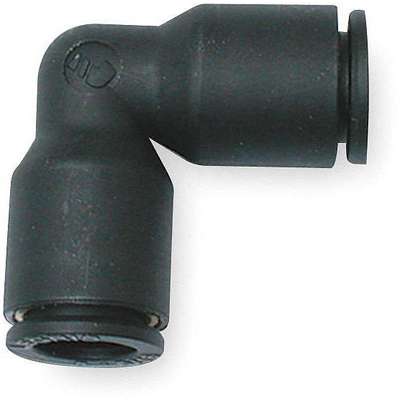

Elbow: Nylon, Push-to-Connect x Push-to-Connect, For 1/2 in x 1/2 in Tube OD, Black, 10 PK

Hover over image to magnify
Union Elbow, 90 Deg, 1/2"Tube,
Union Elbow, 90 Deg, 1/2"Tube,
Elbow: Nylon, Push-to-Connect x Push-to-Connect, For 1/2 in x 1/2 in Tube OD, Black, 10 PK Video

#917358-5 | Pkg Qty: 10

$118.30 pkg | $11.83 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Basic Material
Plastic
Maximum Pressure
290 psi
Body Material
Glass Filled Nylon
Mfr. Part Number
3102 62 00
Brand
LEGRIS
Package Quantity
10
Color Family
Black
Pneumatics Fittings Sub-Category
Elbows
Connection Type
Tube
Shipping Weight
.45 lb.
Item
Elbow, 90°
Tube Size
1/2 in.
Material of Construction
Glass Filled Nylon
Type
90°
General
End Connection Type
Push-to-Connect
Includes Pre-Applied Thread Sealant
No
Fitting Side A Connection Type
Push-to-Connect
Metal Detectable
No
Fitting Side A Tube Outer Diameter
1/2 in
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Fitting Side B Connection Type
Push-to-Connect
Specific Fitting Shape
90° Elbow
Fitting Side B Tube Outer Diameter
1/2 in

Product Description

Glass-Filled Nylon Push-To-Connect Fittings Glass-Filled Nylon Push-To-Connect Fittings

  • Max. operating pressure: 290 psi Temp. range: -4° to 175°F Pkg. qty.: 10, unless otherwise noted Stainless steel gripping ring provides a secure, leak-free connection without tools; disconnects easily with the plastic release button. All threaded elbows, tees, and Y's swivel around the threaded, nickel-plated base for easy installation. Fitting bodies are a composite material—nylon and nickel-plated brass. Thread sealant is preapplied to all tapered threads. Buna N elastomer seals. Can be used with all pneumatic machines, as well as for food-processing, packaging equipment, textile machinery, robotics, and semiconductor applications. Use with semirigid nylon, flexible polyurethane, polyethylene, and PTFE tubing.
