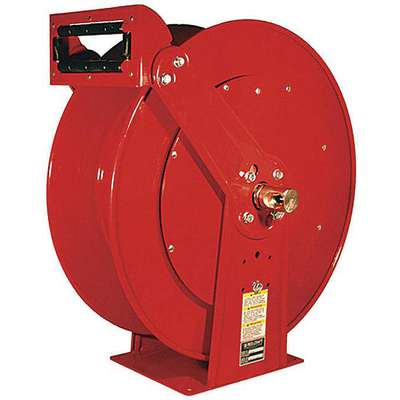

3/4", 75 ft. Spring Return Hose Reel, 250 psi Max. Pressure

3/4", 75 ft. Spring Return Hose Reel, 250 psi Max. Pressure
Hose Reel,3/4 In.,75 Ft. L,250
3/4", 75 ft. Spring Return Hose Reel, 250 psi Max. Pressure Video
3/4", 75 ft. Spring Return Hose Reel, 250 psi Max. Pressure Video
3/4", 75 ft. Spring Return Hose Reel, 250 psi Max. Pressure Video
3/4", 75 ft. Spring Return Hose Reel, 250 psi Max. Pressure Video
3/4", 75 ft. Spring Return Hose Reel, 250 psi Max. Pressure Video

#917344-8 | Pkg Qty: 1

$739.20 pkg | $739.20 ea
Item Number 917344-8
Scanner Description Hose Reel,3/4 In.,75 Ft. L,250
Inventory Status Drop Ship Item
Weight 77 lb
Brand REELCRAFT

Technical Specifications

Bearings
Permanently Lubricated
Item
Spring Return Hose Reel
Brand
REELCRAFT
Maximum Pressure
250 psi
Drive Type
Spring Return
Maximum Temperature
150 deg. F
Enclosed Reel
No
Mfr. Part Number
FD83000 OLP
Finish
Powder Coated
Mounting
Wall, Floor, Ceiling, Truck
Hose Ends
3/4 in. (F)NPT
Overall Height
25-3/8 in.
Hose Included
No
Overall Length
24 in.
Hose Inside Diameter
3/4 in.
Overall Width
14-1/4 in.
Hose Length
75 ft.
Pack Quantity
1
Hose Reel Group
Spring Return Hose Reels
Reel Inlet
3/4 in. (F)NPT
Hose Reel Media
Fuel
Seal Type
Viton®
Hose Reel Rating
Heavy Duty
Type
Low Pressure, Auto Retractable
Housing Material
Steel

Product Description

The Reelcraft® retractable fuel delivery reel is equipped with low temp Viton® seals and incorporates metal forms to insure the greatest possible strength. Ideal for mobile and fixed mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85.

Item Barcode
9173448
  Name Item Description
Grainger Dropship Grainger Dropship 5PG09 Hose Reel,3/ 4 In.,75 ft.
UNSPSC CODES UNSPSC CODES 40142121
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Hose Reel,3/ 4 In.,75 ft.
