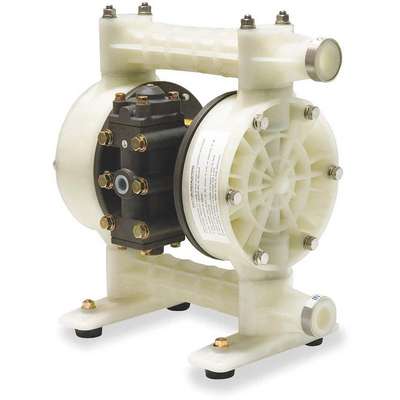

Double Diaphragm Pump, 28 gpm Max. Flow, Santoprene, Single Manifold Connection, 1/4" FNPT

Zoom Icon

#917177-2 | Pkg Qty: 1

$653.34 pkg | $653.34 ea
Item Number 917177-2
Scanner Description Pump,Diaphragm,3/4 In
Inventory Status Drop Ship Item
Weight 21.7 lb
Brand DAYTON

Technical Specifications

Air Inlet Size
1/4 in. FNPT
Manifold Connection
Single
Ball Material
EPDM
Manufacturers Warranty Length
1 yr.
Body Material
Polypropylene
Max. Dia. Solids
1/16 in.
Brand
DAYTON
Max. Flow
28 gpm
Check Seat Material
Polypropylene
Max. Flow (GPM)
28
Connection Style
NPT
Max. Operating PSI
100
Diaphragm Design
Santoprene®
Max. Operating Pressure
100 psi
Diaphragm Material
Santoprene®
Max. Temp - Pumps
180°F
Diaphragm Material - Pumps
Santoprene®
Mfg Part Number
6PY35
Flow
21 gpm
Operation Type
Air Operated
Height
14-1/2 in.
Pack Quantity
1
Housing Material - Pumps
Polypropylene
Pump Operation Type
Air Operated
Inlet/Outlet
3/4 in.
Self-Priming Dry
18 ft.
Inlet/Outlet Size
3/4 in.
Self-Priming Wet
28 ft.
Item
Double Diaphragm Pump
Valve Type
Ball
Item - Air Operated Pumps
Double Diaphragm Pump
Width
14-3/4 in.
Length
12-1/2 in.

Product Description

Dayton Air-Operated Diaphragm Pumps are the most versatile pumps on the market. They are used in a wide variety of applications including general pump transfer, recirculation, dispensing, spraying, filling, rough metering dewatering, low shearing transfer, and evacuation. They are self-priming, dry running, portable, and intrinsically safe. They cannot overheat and can achieve a variable flow rate to match the application requirement. These pumps can be used for a wide variety of liquids from acids, caustics, and solvents to high viscosity shear sensitive liquids including paints, inks, and adhesives, to abrasives and slurries.

Item Barcode
9171772
  Name Item Description
Grainger Dropship Grainger Dropship 6PY35 Pump, Diaphragm,3/
UNSPSC CODES UNSPSC CODES 40151548
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Pump, Diaphragm,3/
