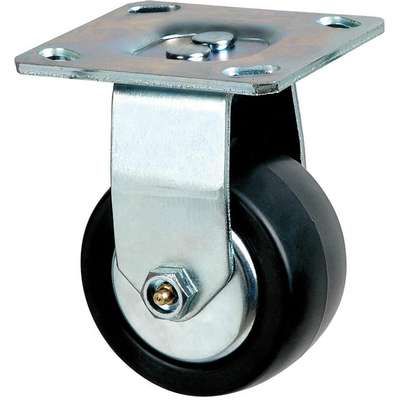

Standard Plate Caster, Rigid, Polyolefin, 600 lb., 4" Wheel Dia.

Hover over image to magnify
Rigid Plate Caster,600 Lb,4 In
PI_Asset_947819
Rigid Plate Caster,600 Lb,4 In
PI_Asset_947819

#917151-3 | Pkg Qty: 1

$19.09 pkg | $19.09 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
600 lb.
Caster Brake Included
No
Mfr. Part Number
4HXL3
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
3/8 in.
Caster Core Material
Plastic
Mounting Height
5-5/8 in.
Caster Load Rating Range
Light- Medium Duty
Non-Marking
Yes
Caster Plate Hole Pattern
B
Number of Mounting Holes
4
Caster Plate Size
4 in. x 4-1/2 in.
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Wheel Bearings
Roller
Package Quantity
1
Caster Wheel Shape
Standard
Plate Caster Sub-Type
Rigid
Caster Wheel/Tread Material
Polyolefin
Shipping Weight
3.07 lb.
Core Color
Black
Swivel Construction
Kingpinless
Durometer
65 Shore D
Wheel Color
Black
Frame Finish
Zinc Plated
Wheel Diameter
4 in.
Frame Material
Steel
Wheel Width
2 in.
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel/Tread Hardness Rating
Hard
Item
Debris-Resistant Standard Plate Caster
General
Caster Frame Material
Steel
Swivel Lock Type
No Lock Included
Caster Plate Thickness
13/64"
Thread Guards
Yes
Caster Product Group
Rigid Caster
Tread Shape
Standard
Caster Temp. Range Available
No
Wheel Bearing Type
Roller
Load Rating Range
300 to 999 lb
Wheel Core Material
Plastic
Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Hardness
65 Shore D
Mounting Plate Size
4 in x 4 1/2 in
Wheel/Tread Material
Polyolefin
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4 1/2 in (B)

Product Description

Debris-resistant light-duty standard plate casters each have a thread guard that prevents thread and debris from getting into the caster's axle and damaging or contaminating it. This helps extend the life of the casters when they're used in dusty or dirty environments. They are suitable for transporting relatively light loads along smooth, flat surfaces in applications where they won't encounter shock loading, such as laundry rooms, textile factories, offices, retail stores, schools, and government buildings. The casters attach to the bottom of carts, dollies, tables, and similar equipment that will be moved manually at moderate speeds. Sometimes known as institutional plate casters, these light-duty standard plate casters have zinc-plated steel frames.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
