DAYTON

Electric Drum Pump Motor: Electric, 110V AC, 4/5 hp Motor HP, 6.4 A Full Load Amps, Plastic

Hover over image to magnify

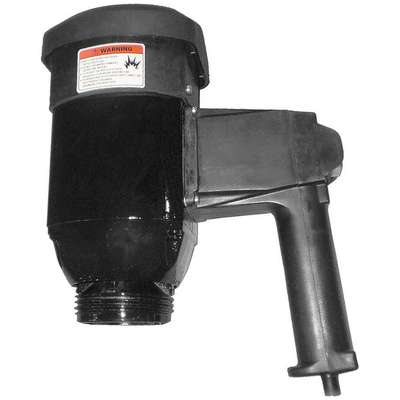

Electric Motor, Drum Pump
Electric Motor, Drum Pump

#917120-2 | Pkg Qty: 1

$325.25 pkg | $325.25 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action
A
Maximum Temperature (Deg. F)
120
Agency Compliance
UL
Mfr. Part Number
5UWF1
Brand
DAYTON
Mfr. Warranty Length
1 yr.
Enclosure
TEFC
Motor Enclosure
TEFC
Fits
5UWF3, 5UWF4, 5UWF5, 5UWF6
Motor RPM
10600
For Use On
5UWF3, 5UWF4, 5UWF5, 5UWF6
Motor Type
Electric
Full Load Amps
5.8
Nameplate RPM
10600
Height
13 in.
Pack Quantity
1
Horsepower
3/4
Phase
1
Housing Material
Plastic
RPM
10000
Hz
60
Shipping Weight
10.2 lb.
Input Watts
600 in.
Thermal Protection
Yes
Insulation Class
F
Type
Electric Motor
Item
Drum Pump Motor
Voltage
115
Maximum Liquid Temperature
120°F
Voltage @ 60 Hz
115
General
Application
Engineered For Use In Heavily Corrosive Environments Or When Aggressive Fumes Are Present
Height Above Container
9 21/64 in
Explosion Proof
No
Nominal Voltage
110V AC
For Container Size
55 gal
Number of Phases
1
For Container Type
Drum
Pump Package Type
Drum Pump Motor
For Use With
Engineered For Use In Heavily Corrosive Environments Or When Aggressive Fumes Are Present
Rated Voltage
115V AC

Product Description

General purpose electric drum pump motors can be used to pump a range of nonflammable fluids in everyday environments. They draw power directly from an electrical outlet or from an internal rechargeable battery to drive the impeller of a pump. These electric-powered motors deliver a steady supply of power for more consistent and accurate flow rates than pneumatic motors.
