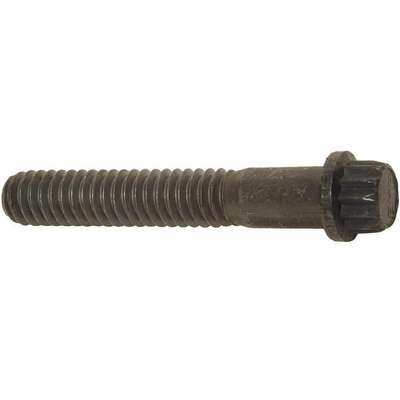

Alloy Steel 12-Point Flange Head Cap Screw, 5/8"-11 Thread Size, 2-1/4"L, Partially Threaded,PK5
#917102-7 | Pkg Qty: 5
$22.70 pkg | $4.54 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Steel
Material
Carbon Steel
Brand
APPROVED SUPPLIER
Meets/Exceeds
ASTM A574, IFI-115
Fastener Head Height
5/8 in.
Mfr. Part Number
2FB62
Fastener Industry Standards
ASTM A574, IFI-115
Minimum Thread Length
1-1/2 in.
Fastener Tensile Strength
170000 psi
Package Quantity
5
Finish
Plain
Proof Load
140,000 psi
Flange Bolt Head Type
12-Point
Rockwell Hardness
C37 to C45
Flange Bolt Thread Style
Partially Threaded
Shipping Weight
1.15 lb.
Flange Bolt Type
Standard
System of Measurement
Fractional
Flange Diameter
15/16 in.
Thread Direction
Right Hand
Head Width
5/8 in.
Thread Length
1-3/4 in.
Item
12-Point Flange Head Cap Screw
Thread Size
5/8"-11
Length Under Head
2-1/4 in.
Thread Type
Coarse
General
Maximum Flange Diameter
15/16 in
Thread Fit
3A
Nut Width
5/8 in
Product Description
Flanged Alloy Steel 12-Point Head Cap Screws
- Screws exceed the strength of SAE Grade 8 cap screws, including greater resistance to breakage and higher shear strength. 12-pt. external head design allows higher torques without rounding head.
- Meet ASTM A574 standard.
- Note: Partially threaded screws are also available.
Item Barcode
Hex Cap Screw,5/8-11x2-1/4,PK5
Name | Item | Description | |
---|---|---|---|
Grainger Dropship | 2FB62 | Hex Cap Screw,5/8- | |
UNSPSC CODES | 31161501 | ||
VMRS (ATA) CODES | 053-007-005 | Hex Cap Screw,5/8- |
