AIR HANDLER

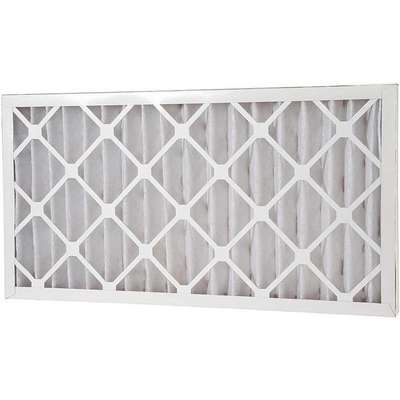

Air Handler General Use Pleated Air Filter, 16x30x2, MERV 7, Standard Capacity, Synthetic, Beverage Board

Hover over image to magnify
Standard Capacity Pleated
Standard Capacity Pleated
Air Handler General Use Pleated Air Filter, 16x30x2, MERV 7, Standard Capacity, Synthetic, Beverage Board Video

#917069-8 | Pkg Qty: 12

$363.84 pkg | $30.32 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Actual Depth
1-3/4 in.
Item
Pleated Air Filter
Actual Height
15-1/2 in.
MERV
7
Actual Width
29-1/2 in.
Maximum Temperature
180 deg. F
Agency Compliance
UL 900 Classified
Maximum Velocity
500 fpm
Air Flow @ 300 FPM
1,000 cfm
Media Area
11.1 sq. ft.
Air Flow @ 500 FPM
1,667 cfm
Media Type
Synthetic
Brand
AIR HANDLER
Mfr. Part Number
3TPZ9
Capacity
Standard Capacity
Nominal Depth
2 in.
Filter Efficiency
35%
Nominal Height
16 in.
Filters Out
Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores
Nominal Width
30 in.
Frame Color
White
Package Quantity
12
Frame Included
Yes
Removes Particles Down To
3.0 to 10.0 microns
Frame Material
Beverage Board
Shipping Weight
12 lb.
General
Actual Filter Size
15-1/2 in x 29-1/2 in x 1-3/4 in
Max. Temp.
180 Degrees F
Air Filter Capacity
Standard Capacity
Media Material
Synthetic
Common Applications
General Use
Nominal Filter Size
16x30x2
Filter Efficiency - Air Filters
0.35
Performance Rating
MERV 7
Final Recommended Resistance
1.0 in in wc
Pleats per Linear Foot
25
Frame or Header Material
Beverage Board
Standards
UL 900 Classified
Initial Resistance @ 300 fpm
0.22 in wc
Style - Air Filters
Panel
Initial Resistance @ 500 fpm
0.37 in wc

Product Description

MERV 7 general purpose pleated air filters provide between 35% and 50% efficiency for filtering particles between 3 and 10 microns in size (such as mold spores, dusting aids, and cement dust).

Pleated air filters capture airborne contaminants more effectively than non-pleated air filters because the pleated filter media provides more surface area for trapping contaminants than non-pleated media. These filters are commonly installed in HVAC systems in food and beverage, healthcare, hospitality, education, and industrial facilities to remove contaminants from the air stream and improve the quality of the air. They also prevent the contaminants from building up in the equipment and causing damage to it. The filters are designed to be discarded when they are spent. They typically have a MERV (minimum efficiency reporting value) rating of between 7 and 13. A filter's MERV rating measures how efficiently it removes contaminants from the air stream based on the size of the particles it can effectively capture. The higher the MERV rating is, the more effectively the filter traps small particles.
