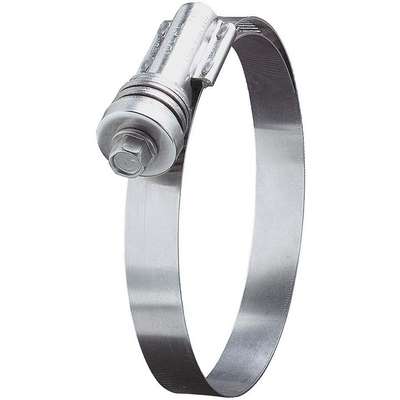

5/8" Wide, Interlocked Worm Gear Hose Clamp; PK 10

Hover over image to magnify
Hose Clamp,1-1/4 To 2-1/8In,
Hose Clamp,1-1/4 To 2-1/8In,

#917064-6 | Pkg Qty: 10

$73.30 pkg | $7.33 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Band Material
300 Stainless Steel
Mfr. Part Number
4120070
Band Width
5/8 in.
Pack Quantity
10
Brand
APPROVED SUPPLIER
Screw Material
Plated Carbon Steel
Bridge Material
300 Stainless Steel
Shipping Weight
2.2 lb.
Clamp Diameter Range
1-1/4 in. to 2-1/8 in.
Size Number
212
Hose Clamps Group
Worm Gear
Type
Constant Tension
Housing Material
300 Stainless Steel
Worm Gear Clamp Type
Interlocked
Item
Worm Gear Hose Clamp
General
Band Width (In.)
5/8
Max. Clamp Dia. (In.)
2-1/8
Hose Clamp Band Material
300 Stainless Steel
Metric Dia. Max.
54 mm
Hose Clamp Band Width
5/8 in
Metric Dia. Min.
32 mm
Hose Clamp Housing Material
300 Stainless Steel
Min. Clamp Dia.
1 1/4 in
Hose Clamp Install Torque
75 in-lb
Min. Clamp Dia. (In.)
1-1/4
Hose Clamp Product Group
Worm Gear Hose Clamp
Screw Size (In.)
3/8
Hose Clamp Screw Material
Plated Carbon Steel
Torque
142 in.-lb.
Max. Clamp Dia.
2 1/8 in
Torque (In.-Lbs.)
125

Product Description

Constant Tension Clamps

  • 5/8" band width 300 stainless steel band/housing/bridge Pkg. qty.: 10 Spring design helps to eliminate "cold flow" leakage. 0.028"-thick clamps, 125 in.-lb. of torque.
