MASTER LOCK

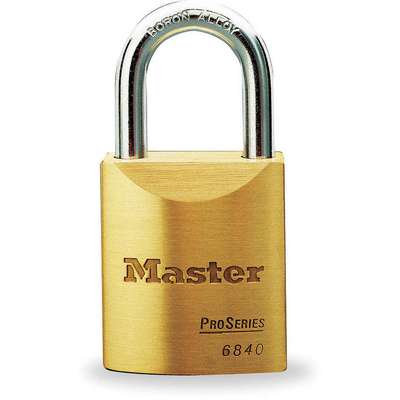

Master Lock Alike-Keyed Padlock, Extended Shackle Type, 2-1/2" Shackle Height, Brass

Hover over image to magnify
Padlock,Ka,2-1/2 In H,5 Pin,
PI_Asset_1983640
Padlock,Ka,2-1/2 In H,5 Pin,
PI_Asset_1983640

#917050-2 | Pkg Qty: 1

$39.64 pkg | $39.64 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Color
Brass
Opens with Key Number
10G145
Body Height
2-3/4 in.
Pack Quantity
1
Body Material
Brass
Padlock Body Shape
Rectangular
Body Thickness
1 in.
Padlock Key Type
Alike
Body Width
1-3/4 in.
Rekeyable
Yes
Brand
MASTER LOCK
Security Level
High Security
High Security
Yes
Shackle Configuration
Extended
Item
Padlock
Shackle Diameter
5/16 in.
Key Type
Alike
Shackle Height
2-1/2 in.
Keyed Padlocks Group
Alike
Shackle Material
Boron
Keyway Type
Master K6000
Shackle Width
25/32 in.
Lock Type
Keyed Padlock
Shape
Rectangular
Mfr. Part Number
6840KALJ-10G145
Shipping Weight
.85 lb.
Number of Bumpers
0
Weather Resistant
Yes
Number of Keys
2
Weatherability
Superior Corrosion Resistance
Number of Pins
5
General
Additional Key Mfr Part No.
K6000-10G145
Nominal Body Height
2 in
Corrosion-Resistant
Yes
Nominal Body Thickness
1 in
Environment
Both
Nominal Body Width
2 in
Features
High Security
Nominal Lock Body Dimensions
2 in x 2 in x 1 in
Horizontal Shackle Clearance
29/32 in
Number of Locks in Pack
1
Horizontal Shackle Clearance Range
1/2 in to 1 in
Opens with Key No.
10G145
Includes
Two Keys
Padlock Body Type
Brass Lock Body
Key Code
10G145
Shackle Diameter Range
1/4 in to 1/2 in
Key Locking Mechanism
Pin Tumbler
Shackle Finish
Chrome-Plated
Lock Body Finish
No Finish
Shackle Shape
Rounded
Lock Body Material
Brass
Vertical Shackle Clearance
2 7/16 in
Lock Body Shape
Rectangular
Vertical Shackle Clearance Range
2 in to 3 in

Product Description

The Master Lock® ProSeries® Solid Body Padlock features a solid brass body for extra resistance in caustic, corrosive environments, and a hardened boron alloy shackle for superior cut resistance. The secure, dependable lock features a dual ball locking mechanism that resists pulling and prying, and a high-security 5-pin rekeyable cylinder with spool pins that is virtually impossible to pick. Designed for commercial/industrial applications.
