HUBBELL WIRING DEVICE-KELLEMS

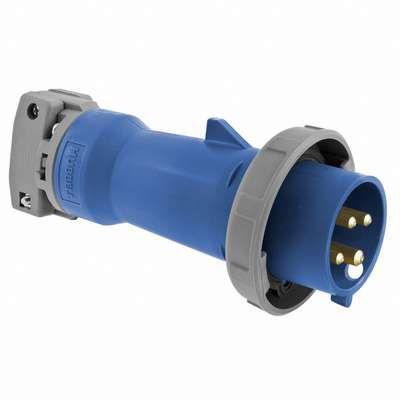

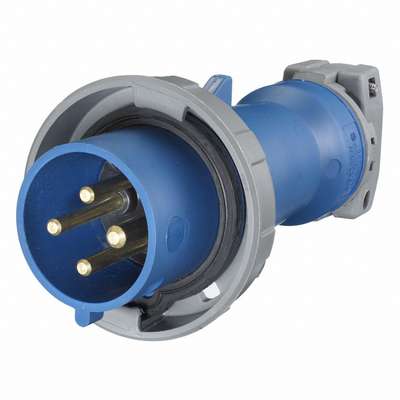

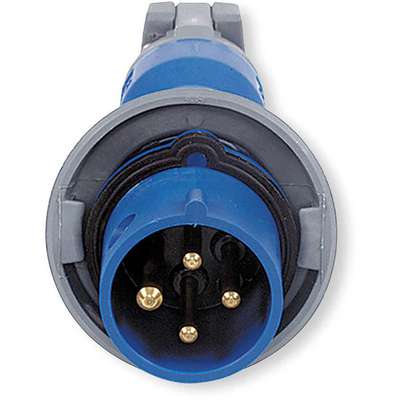

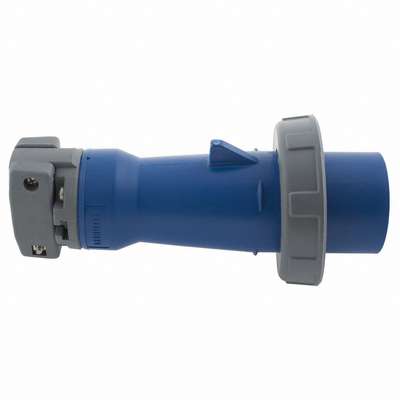

Hubbell Wiring Device-Kellems 30 Amp, 3-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Blue

Hover over image to magnify
Iec Pin And Sleeve Plug,3P,4W,
PI_Asset_1983446
PI_Asset_1988175
PI_Asset_1991175
Iec Pin And Sleeve Plug,3P,4W,
PI_Asset_1983446
PI_Asset_1988175
PI_Asset_1991175

#917047-2 | Pkg Qty: 1

$439.67 pkg | $439.67 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
30 A
Mfr. Part Number
HBL430P9W
Amps
30 A
Minimum Operating Temperature
-40 °C
Body Material
Zytel 801 Nylon
Minimum Wire Size
12 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Enclosure Rating
4X
Cap Type
No Cap or Cover
Number of Poles
3
Color Family
Blue
Number of Wires
4
Connection Orientation
Straight
Overall Length
8.037 in.
Current Rating
30 A
Package Quantity
1
Features
Gasketed Sealing Ring Provides Watertight Seal
Phase
Three
For Maximum Cable Diameter
1.25 in.
Pin & Sleeve Standards
CSA Certifications, IEC 60309, UL Listed
For Minimum Cable Diameter
0.5 in.
Power Indicating Light
No
Grounding
Grounded
Reverse Service
No
Grounding Style
IEC
Shipping Weight
1.45 lb.
Horsepower
7 9/10 hp
Shrouded
Yes
Housing Color
Orange
Standards
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
Housing Material
Polybutylene Terephthalate
Switch Rated
No
IP Rating
IP67
Type
Male Plug
Item
Watertight Pin and Sleeve Plug
UL 94 Flammability Rating
HB
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
Voltage
250VAC
Maximum Operating Temperature
75 °C
Voltage Rating
125/250V
Maximum Wire Size
8 AWG
Wire Connection Type
Screw Terminals
General
Amps - Plugs and Receptacles
30
Phase - Electrical
3
Features
Watertight and Abuse Resistant
Voltage - Plugs and Receptacles
250V AC
HP
3 hp

Product Description

IEC Nonmetallic Watertight Pin and Sleeve Devices

  • Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
