IN-SINK-ERATOR

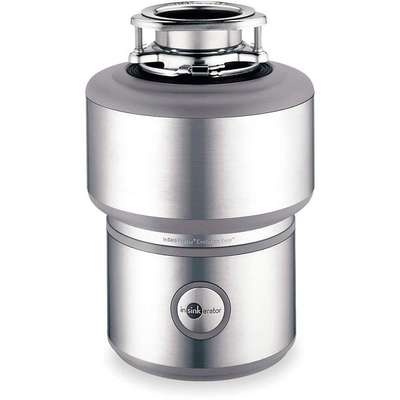

Garbage Disposal, 1 HP, 40 oz. Grinding Chamber Capacity, 120 Voltage, 1-1/2" Connection Drain

Hover over image to magnify
Garbage Disposal,Evolution,1 Hp
Garbage Disposal,Evolution,1 Hp

#916925 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Amps AC
10.2
Item
Garbage Disposal
Bearings
Permanently Lubricated
Mfr. Part Number
Evolution Excel(TM)
Brand
IN-SINK-ERATOR
Overall Height
13-1/2 in.
Duty Cycle
Intermittent
Package Quantity
1
Finish
Stainless Steel
Phase
1
Fits
3-1/2 in. Outer Dia. Sink Opening
RPM
1725
Horsepower
1
Shipping Weight
25.8 lb.
Hz
60
Voltage
120
General
Application
Grinds Food Scraps, Vegetable Peelings, Fruit Rinds, Coffee Grounds And Other Kitchen Wastes
HP
1 hp
Commercial / Residential
Residential
Includes
Sink Baffle
Connection Drain
1 1/2 in
Sink Opening Dia.
3 1/2 in
Disposer Feed
Intermittent
Sound Insulation
Yes
Grinding Chamber Capacity
40 oz

Product Description

Food Waste Disposers

  • Quiet Dura-Drive® split-phase induction motors have permanently lubricated bearings Quick-Lock® mounting system for easy installation
  • Single-phase motors (except Part Numbers: 5H975, 3DVA2, and 3DVA3 are 3-phase). 1725 rpm, 60 Hz, with overload protection and manual reset. Continuous feed, except No. 2YB92 is batch-feed.
  • Evolution Series
  • Stainless steel grind components ensure dependable performance. Multigrind 2- or 3-stage shredder and sound-reducing insulation. Sink baffle included.
  • Excel, No. 2YB91
  • Jam-Sensor Circuit automatically increases motor torque up to 500%.
