REELCRAFT

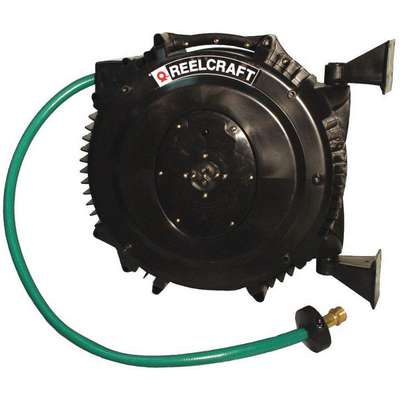

Spring Return Hose Reel: 50 ft (5/8 in I.D.), 3/4 in MGHT x 3/4 in MNH, 125 psi Max Op Pressure

Hover over image to magnify
Hose Reel,General, Industrial,
Hose Reel,General, Industrial,

#916916-4 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
$289.96 pkg | $289.96 ea
Item: 912211-4
Pkg Qty: 1

Technical Specifications

Key Specifications
Bearings
Permanently Lubricated
Latch
Locking
Brand
REELCRAFT
Maximum Pressure
125 psi
Drive Type
Spring Return
Maximum Temperature
150 deg. F
Enclosed
Yes
Mfr. Part Number
SWA3850 OLP
Enclosed Reel
Yes
Mounting Location Type
Ceiling, Floor, Wall
Finish
Polypropylene
Overall Height
19 in.
Hose Capacity
50 ft. (5/8 in I.D.)
Overall Length
22-3/4 in.
Hose Ends
3/4 in. (M)NH
Overall Width
9-1/2 in.
Hose Included
Yes
Package Quantity
1
Hose Inside Diameter
5/8 in.
Pedestal Type
Single Pedestal
Hose Length
50 ft.
Reel Inlet
1/2 in. (F)NPT
Hose Material
PVC
Reel Material
Plastic
Hose Reel Group
Spring Return Hose Reels
Seal Type
Nitrile
Hose Reel Media
Water
Shipping Weight
21 lb.
Hose Reel Rating
Light Duty
Speed Limited Retraction
No
Housing Material
Polypropylene
Type
General Industrial
Includes Hose
Yes
Warranty
2ACC8
Item
Spring Return Hose Reel
General
Base Motion Type
Swivel
Includes Hose Stop
Yes
Bearing Construction
Permanently Lubricated
Includes Leader Hose
No
Corrosion-Resistant
Yes
Mount Base Height
18 1/2 in
Fasteners Included
No
Mount Base Width
5 in
Features
Alkalis and UV Rays
Mount Hole Diameter
5/16 in
Fitting Gender
Male x Male
Mounting Hole Center to Center Height
2 1/8 in
For Dual Hose
No
Mounting Hole Center to Center Width
2 1/2 in
Hose Cover Material
PVC
Number of Mount Holes
8
Hose End Configuration
3/4 in MGHT x 3/4 in MNH
Spiral Hose Guard
No
Hose Fitting A Material
Brass
Swivel Inlet Gender
Female
Hose Fitting A Type
GHT
Swivel Inlet Size
1/2 in
Hose Fitting B Material
Brass
Swivel Inlet Thread Size
1/2 in - 14
Hose Fitting B Type
NH
Swivel Inlet Type
NPT
Hose Inside Dia.
5/8 in
Swivel Material
Brass
Hose Outlet
3/4 in
Swivel Outlet Gender
Male
Hose Outside Dia.
3/4 in
Swivel Outlet Size
1/2 in
Hose Reel Primary Application
Garden Hoses
Swivel Outlet Thread Size
1/2 in - 14
Hose Reel Type
Ceiling, Floor, Wall Mount Hose Reel
Swivel Outlet Type
NPT
Hose Tube Material
PVC
Twin Hose Compatible
No
Includes
Hose; Bumper

Product Description

Enclosed garden spring-return hose reels are lighter weight for medium-duty continuous operation using garden hoses. The corrosion-proof, polypropylene case resists most acids, alkalis, and UV rays. The enclosed reel protects the hose, the reel, and the components inside from outdoor exposure. These low-pressure (up to 500 psi) hose reels mount on exterior walls. Enclosed spring-return hose reels have garden-style hose ends to connect water hoses for watering or spraying commercial and residential landscaping and gardens.
