Acuity Lithonia 48-1/8" x 13-1/4" x 2-3/8" Linear High Bay with Narrow Light Distribution

Hover over image to magnify

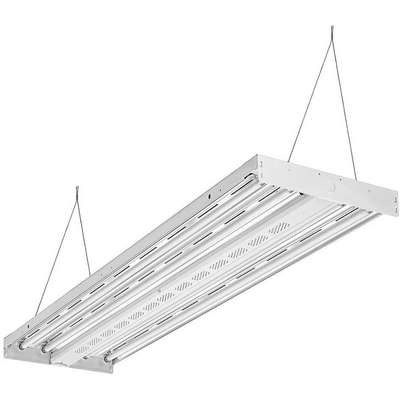

Fluorescent High Bay Fixture,
PI_Asset_1763106
Fluorescent High Bay Fixture,
PI_Asset_1763106

#916858-9 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Fluorescent Fixture,High Bay,
$312.83 pkg | $312.83 ea
Item: 928836-2
Pkg Qty: 1

Technical Specifications

Key Specifications
Ballast Type
Electronic
Mfr. Part Number
IBZT5 4 HBBS361C
Brand
ACUITY LITHONIA
Mounting
Surface or Stem
Height
2-3/8 in.
Number of Lamps
4
Housing Finish
High Gloss Enamel
Package Quantity
1
Housing Material
Steel
Reflector Style
MIRO 4
Item
Fluorescent High Bay Fixture
Series
Ibz
Lamp Included
No
Shipping Weight
11 lb.
Lamp Type
Fluorescent
Voltage
120 to 277 V
Lamp Watts
54 W
Width
13-1/4 in.
Length
48-1/8 in.
General
Ambient Temp. Range
-4 Degrees to 131 Degrees F
Light Distribution
Narrow
Ballast Start Type
Program Start
Lighting Certification
Unrated
Bay Light Type
High Bay
Max. Ambient Temp.
131 Degrees F
Bulbs Included
No
Max. Fixture Wattage
216 W
CA Title 24 Compliant
No
Min. Ambient Temp.
-4 Degrees F
Emergency Battery Backup
No
Nominal Size - Fixtures
1 ft x 4 ft
Fixture Type - High and Low Bay Fixtures
Linear High Bay
Number of Bulbs
4
Fixture Voltage
120 to 277
Number of Light Bars
4
For Bulb Base Type
Bi-Pin
Overall Width
13 1/4 in
For Bulb Shape
Linear
Reflector Material
Aluminum
For Bulb Type
T5HO
Reflector Type
Apertured
Green Environmental
Product Contributes To Reducing Energy Consumption
Suggested Fixture Mounting Height
15 to 40 ft
Includes
(2) Chain Hanger with 36 in Chain
Suggested Fixture Mounting Height Range
20 to 40 ft.
Lamp Watts - Fixtures
54 W

Product Description

These high bay lights hang from ceilings or open trusses at a suggested mounting height of 20 to 40 ft. from the floor or work surface.
