DAYTON

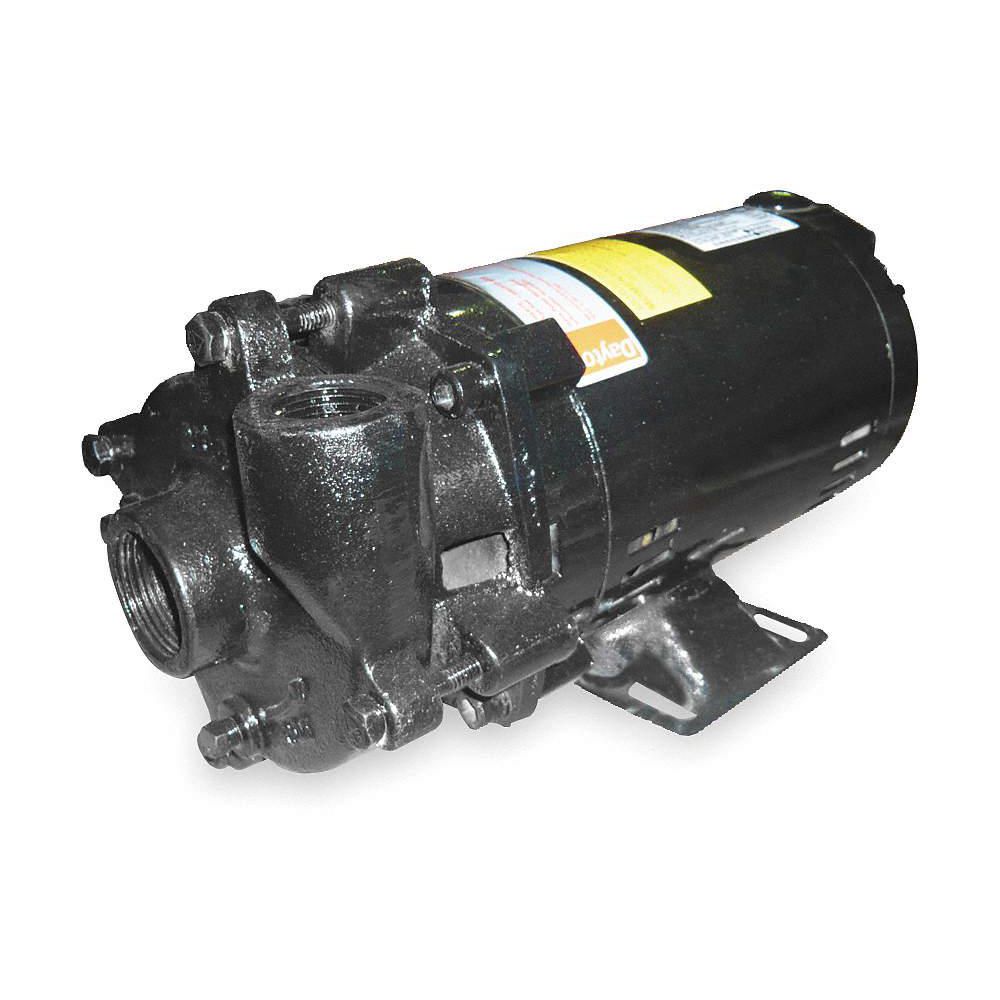

208 to 240/480 VAC Open Dripproof Centrifugal Pump, 3-Phase, 1-1/4" NPT Inlet Size
Hover over image to magnify
#916594-3 | Pkg Qty: 1
$386.45 pkg | $386.45 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
c UL us
Maximum GPM @ Head
72 gpm @ 10 ft.
Amps
2.7-2.5/1.2 A
Maximum Head
55
Bearing Type
Ball
Maximum Liquid Temperature
200°F
Bearings
Ball
Maximum Pressure
23.80 psi
Best Efficiency GPM @ Head
47 gpm @ 36 ft.
Maximum Specific Gravity
1
Best Efficiency Range GPM @ Head
35 to 63 gpm @ 45 to 20 ft.
Mfr. Part Number
2ZWP4
Brand
DAYTON
Mfr. Warranty Length
1 yr.
Drain Plug
Easily Accessible, 2 Position
Minimum GPM @ Head
22 gpm @ 50 ft.
Duty
Continuous
Motor Enclosure
ODP
Duty Cycle
Continuous
Motor RPM
3450
Frame
56J
Motor Type
3-Phase
GPM of Water @ 10 Ft. of Head
72
NEMA/IEC Frame
56J
GPM of Water @ 15 Ft. of Head
67
Number of Port Positions
4 Position
GPM of Water @ 20 Ft. of Head
63
Outlet Size
1 in. NPT
GPM of Water @ 25 Ft. of Head
58
Pack Quantity
1
GPM of Water @ 30 Ft. of Head
53
Phase
3
GPM of Water @ 40 Ft. of Head
41
Port Rotation
4 Position Increments
GPM of Water @ 50 Ft. of Head
22
Pump Length
12-3/4 in.
Height
5-7/8 in.
Pump Size
1-1/4 in. X 1
Horsepower
3/4
Screw Material
Steel, Zinc Plated
Housing Material
Cast Iron
Seal Application
Long Life When not Run Dry or Pumping Abrasives
Hz
60
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
Impeller Material
Cast Iron
Seal Type
Mechanical
Impeller Type
Semi Open
Service Factor
1-1/2
Inlet
1-1/4 in. NPT
Shaft Material
Stainless Steel
Inlet Pressure
200 psi
Shaft Size
5/8 in.
Item
Straight Centrifugal High Flow Pump
Shipping Weight
34 lb.
Length
12-3/4 in.
Type
Centrifugal
Liquid Compatibility
Nonflammable, Non Abrasive
Voltage
208 to 240/480 VAC
Maximum Case Pressure
200 psi
Volute Material
Cast Iron
Maximum Diameter Solids
1/2 in.
Wetted Materials
Cast Iron, Buna-N, Carbon, Ceramic, Stainless Steel
Maximum Fluid Viscosity
100 SSU
Width
6-5/8 in.
General
Application
Suitable for general transfer, boiler feed, condensate return, water circulation, irrigation, cooling towers, filtration, and pressure boosting.
Includes
Manual
Best Efficiency Flow
47 gpm
Intake Type
NPT
Best Efficiency Head
36 ft
Intake and Discharge Size
1 1/4 in , 1 in
Compatible Discharge Pipe Size
1 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/4 in
Maximum Feet of Head
50 ft
Compatible with Media Type
Non-Flammable Liquids
Maximum Media Temperature
200 Degrees F
Discharge Rotation
90 Degrees Increments
Minimum Media Temperature
40 Degrees F
Discharge Type
NPT
Motor Enclosure Type
ODP
Feet of Head (Minimum)
10 ft
Motor Frame Designation
56J
Flow Rate @ 10 ft of Head (Maximum)
72 gpm
Nameplate Voltage
208-230/460V AC
Flow Rate @ 15 ft of Head (Maximum)
67 gpm
Nominal Voltage
208-230/460V AC
Flow Rate @ 20 ft of Head (Maximum)
63 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 30 ft of Head (Maximum)
53 gpm
Pumping Application
Aggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation
Flow Rate @ 40 ft of Head (Maximum)
41 gpm
Shut Off Pressure (Maximum)
24 psi
Flow Rate @ 50 ft of Head (Maximum)
22 gpm
Solid Diameter (Maximum)
0.5 in
For Use With
Non-Flammable and Non-Abrasive Liquids Compatible with Pump Component Materials
Specific Gravity (Maximum)
1
For Use With Potable Systems
No
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Impeller Design
Semi-Open
Product Description
Dayton close-coupled units pump continuously, producing high flow rates under low-head conditions. Designed for continuous low-pressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications, and other general purpose pumping compatible with pump component materials where no suction lift or self priming is required.
