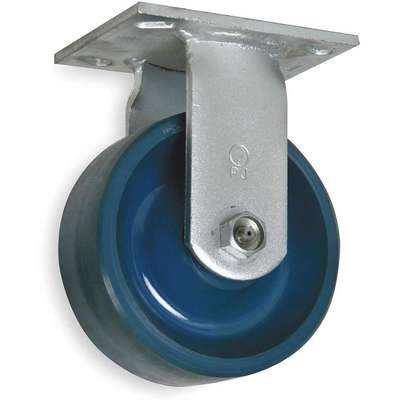

Standard Plate Caster, Rigid, Polyurethane, 1000 lb., 6" Wheel Dia.

Hover over image to magnify
Rigid Plate Caster,1000 Lb,6
PI_Asset_947819
Rigid Plate Caster,1000 Lb,6
PI_Asset_947819

#916547-3 | Pkg Qty: 1

$41.63 pkg | $41.63 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
1000 lb.
Caster Brake Included
No
Mfr. Part Number
1NWP5
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
3/8 in.
Caster Core Material
Polyurethane
Mounting Height
7-1/4 in.
Caster Load Rating Range
Medium Duty
Non-Marking
Yes
Caster Plate Hole Pattern
B
Number of Mounting Holes
4
Caster Plate Size
4 in. x 4-1/2 in.
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Wheel Bearings
Precision Ball
Package Quantity
1
Caster Wheel Shape
Standard
Plate Caster Sub-Type
Rigid
Caster Wheel/Tread Material
Polyurethane
Shipping Weight
5.09 lb.
Core Color
Black
Swivel Construction
Kingpinless
Durometer
65 Shore D
Wheel Color
Green
Frame Finish
Zinc Plated
Wheel Diameter
6 in.
Frame Material
Steel
Wheel Width
2 in.
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel/Tread Hardness Rating
Hard
Item
Standard Plate Caster
General
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4 1/2 in (B)
Caster Plate Thickness
1/4"
Standards
ICWM
Caster Product Group
Rigid Caster
Swivel Lock Type
No Lock Included
Caster Temp. Range Available
No
Thread Guards
No
Features
Corrosion Resistant
Tread Shape
Standard
Includes
Spanner Bushing
Wheel Bearing Type
Precision Ball
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Polyurethane
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Hardness
65 Shore D
Mounting Plate Size
4 in x 4 1/2 in
Wheel/Tread Material
Polyurethane

Product Description

Medium-duty standard plate casters mount to the bottom of carts, dollies, platform trucks, tool boxes, storage racks, and other industrial equipment that will be moved manually at moderate speeds. They are suitable for transporting loads along smooth, flat surfaces in areas where the casters won't encounter shock loading, such as shops, docks, warehouses, waste-disposal areas, manufacturing plants, and other industrial settings. These casters have zinc-plated steel frames. Swivel versions of these casters have double ball swivel bearings, which are quieter and allow the caster to swivel more smoothly than roller bearings.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
