Home All Products Electrical Wire Connectors Push-In Wire Connectors SKU: 916407-4
IDEAL

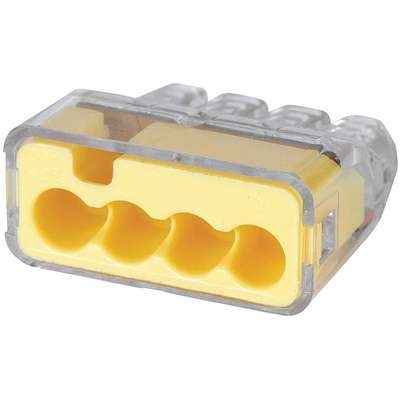

Ideal Push-In Connector, 4 Port, Yellow, 18 to 12 AWG Stranded, 20 to 12 AWG Solid Wire Range

Hover over image to magnify
Push In Connector,4 Port,
PI_Asset_965767
PI_Asset_965768

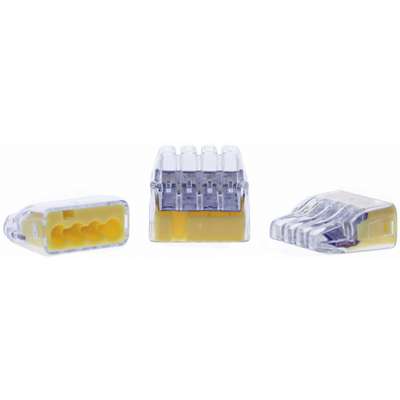

PI_Asset_965769
Push In Connector,4 Port,
PI_Asset_965767
PI_Asset_965768
PI_Asset_965769

#916407-4 | Pkg Qty: 100

$26.65 pkg | $0.27 ea

Technical Specifications

Key Specifications
Brand
IDEAL
Mfr. Part Number
30-1034
Color Family
Yellow
Minimum Wire Size
20 Solid, 16 Stranded (?19 Strand), 18 Stranded (7 strand); 18 Tin-Bond Stranded (?19 Strand) AWG
Connector Type
4 Port
Pack Quantity
100
Description/Special Features
Polycarbonate Housing with Ergonomic Grip
Shipping Weight
.61 lb.
Height
0.38 in.
Special Features
Polycarbonate Housing with Ergonomic Grip
Item
Push-In Connector
Standards
CSA Certified
Length
0.78 in.
Type
Push-In
Maximum Voltage
600 V
Wire Range
20 to 12 AWG Solid, 18 to 12 AWG Stranded
Maximum Wire Size
12 Solid, 12 Stranded (?19 Strand), 18 Stranded (7 strand); 14 Tin-Bond Stranded (?19 Strand) AWG
General
Compatible with Product Type
Twist-On Wire Connector
For Minimum Wire Size - Stranded
18 AWG
Contact Finish
Tin
For Wire Size
12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG
Current
20 A
RoHS Compliant
Yes
For Conductor Material
Copper, Tin-Plated Copper
Strip Length
3/8 in
For Maximum Wire Size - Solid
12 AWG
UL 94 Flammability Rating
V-2
For Maximum Wire Size - Stranded
12 AWG
Wire Size Range
20 AWG – 12 AWG
For Minimum Wire Size - Solid
20 AWG

Product Description

In-Sure™ Push-In Wire Connector meets standards for grounding and bonding applications, and a flame-retardant shell rated at 105°C (221°F). Its feature compact size makes installation easy. No-twist connection reduces repetitive motion fatigue. Low insertion force allows fast and easy connections. The clear shell gives visual verification of connection. Connector accepts solid or stranded wire.

Item Barcode
9164074
Push In Connector,4 Port,
  Name Item Description
Grainger Dropship Grainger Dropship 5EKL4 Push In Connector,4
UNSPSC CODES UNSPSC CODES 39121409
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 Push In Connector,4

For more product information by email, click here
