This product has been discontinued and is no longer available. Shop Category
Share
Print

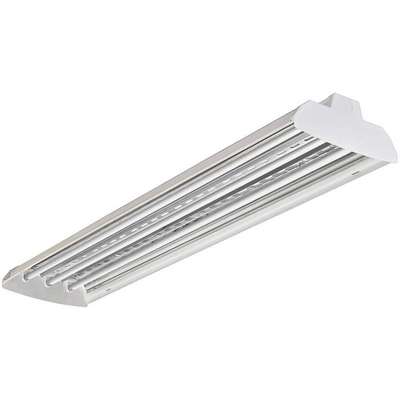

Acuity Lithonia 46-1/16" x 9-3/4" x 4-1/4" Linear High Bay with Narrow Light Distribution
Hover over image to magnify
#916287-7 | Pkg Qty: 1
Technical Specifications
Key Specifications
Ballast Type
Electronic Programmed Rapid Start
Mfr. Part Number
MS5HB 3 54T5HO ND 277 1/3 GEB10PS MSI
Brand
ACUITY LITHONIA
Mounting
Ceiling
Height
4-1/4 in.
Number of Lamps
3
Housing Finish
High Gloss White Baked Enamel
Pack Quantity
1
Housing Material
20 ga. Steel
Reflector Style
MIRO 4 Parabolic
Item
Fluorescent High Bay Fixture
Series
Ms5Hb
Lamp Included
No
Shipping Weight
1.21 lb.
Lamp Type
T5
Voltage
120 to 277 VAC
Lamp Watts
54
Width
9-3/4 in.
Length
46-1/16 in.
General
Ambient Temp. Range
-4 Degrees to 77 Degrees F
Max. Ambient Temp.
77 Degrees F
Ballast Start Type
Program Start
Max. Fixture Wattage
162 W
Bay Light Type
High Bay
Min. Ambient Temp.
-4 Degrees F
Bulbs Included
Yes
Nominal Size - Fixtures
1 ft x 4 ft
CA Title 24 Compliant
No
Number of Bulbs
3
Fixture Type - High and Low Bay Fixtures
Linear High Bay
Number of Light Bars
3
Fixture Voltage
120 to 277
Overall Length
46 1/8 in
For Bulb Base Type
Bi-Pin
Overall Width
9 3/4 in
For Bulb Shape
Linear
Reflector Material
Aluminum
For Bulb Type
T5HO
Reflector Type
Louvered
Lamp Watts - Fixtures
54 W
Suggested Fixture Mounting Height
15 to 40 ft
Light Distribution
Narrow
Suggested Fixture Mounting Height Range
20 to 40 ft.
Lighting Certification
Unrated
Product Description
These high bay lights hang from ceilings or open trusses at a suggested mounting height of 20 to 40 ft. from the floor or work surface.
Item Barcode
Fluorescent High Bay Fixture,
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 33L660 | Fluorescent High Bay |
|
UNSPSC CODES | 39111501 | |
|
VMRS (ATA) CODES | 053-006-010 | Fluorescent High Bay |
