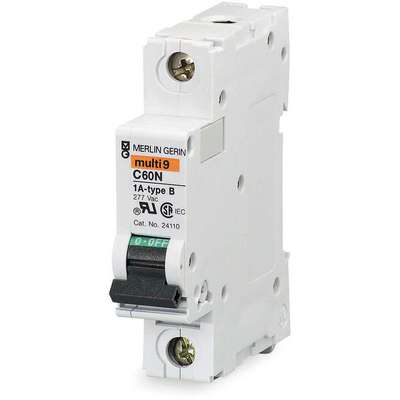

IEC Supplementary Protector, Amps 25, AC Voltage Rating 277V AC, DC Voltage Rating 65V DC
#916273-9 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
AC Voltage Rating
277 VAC
Low Amp Trip Setting
80
Air @ 120 VAC
10kA
Maximum Air Rating
5 kA
Air @ 125 VDC
10kA
Maximum DC Voltage
65
Air @ 240 VAC
10kA
Maximum Wire Size
4 AWG
Air @ 277 VAC
5kA
Mfr. Part Number
MG24120
Air @ 48 VDC
10kA
Minimum Wire Size
14 AWG
Air @ 480 VAC
5.0kA
Mounting
DIN Rail
Air @ 65 VDC
10kA
Number of Poles
1
Amperage
25 A
Package Quantity
1
Brand
SCHNEIDER ELECTRIC
Phase
1
Circuit Breaker Type
Miniature UL 1077
Series
C60N
Curve Type
B
Shipping Weight
.27 lb.
DC Voltage Rating
65 VDC
Standards
UL 1077, CE, CSA, IEC
Depth
3 in.
Terminal Connection
Lug
Frame Size
63A/C100N
Trip Type
Thermal Magnetic
High Amp Trip Setting
120
Type
Din Rail Mount
Instantaneous Trip
Fixed
Voltage
277 VAC
Item
IEC Supplementary Protector
Width
0.71 in.
Length
3.19 in.
General
AIR @ 120VAC
10kA
AIR @ 48VDC
10kA
AIR @ 125VDC
10kA
AIR @ 65VDC
10kA
AIR @ 240VAC
10kA
Circuit Breaker Actuator
Toggle
AIR @ 277VAC
5kA
Circuit Breaker Mounting Style
DIN Rail
AIR @ 480VAC
5.0kA
Meets UL Type
UL 1077
Product Description
Miniature Circuit Protectors and Breakers
- B curve = magnetic trip between 3.2 and 4.8 times rated current (computer, electronic, and generator applications) C curve = magnetic trip between 7 and 10 times rated current AC and 7 to 14 times for DC (general purpose applications) D curve = magnetic trip between 10 and 14 times rated current (motors, transformers, and similar applications) Multi 9 breakers feature factory-calibrated overload curves. Withstand 6000V impulse. Rated for 20, 000 tripping operation cycles. Line and load side box lug terminals (pressure plate type) are suitable for use with multiple wires. DIN rail or panel mount with accessory front bracket. Wire size: max. 4 AWG Cu for 0.5 to 25A models, max. 2 AWG Cu for 30 to 63A models. UL 1077Supplementary Protection within Equipment
- 10kA IR at 240VAC 5kA IR at 480Y/277VAC Must use with circuit breaker or fuse. Recognized components for applications permitting supplementary protectors. Not a substitute for UL 489 models, and must be used in conjunction with branch circuit protection when connecting to external devices. UL 1077Supplementary Protection within Equipment
- 10kA IR at 240VAC 5kA IR at 480Y/277VAC Must use with circuit breaker or fuse. Recognized components for applications permitting supplementary protectors. Not a substitute for UL 489 models, and must be used in conjunction with branch circuit protection when connecting to external devices.
Expertly Selected Product Pairings
$45.84 pkg | $22.92 ea
$34.24 pkg | $34.24 ea
Item Barcode
Circuit Breaker,B Curve,1 Pole,
Name | Item | Description | |
---|---|---|---|
Grainger Dropship | 6B028 | Circuit Breaker,B | |
UNSPSC CODES | 39121603 | ||
VMRS (ATA) CODES | 053-006-009 | Circuit Breaker,B |
