MONARCH

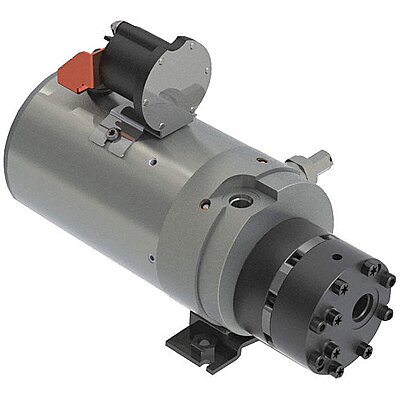

Hydraulic Power Unit, 2.1 hp HP, 12V DC, 3,000 psi Max. Pressure, 2.5 gpm

Hover over image to magnify
Power Unit,1 Stage,12VDC,3000
PI_Asset_977662
PI_Asset_977663
PI_Asset_977664
PI_Asset_977665
Power Unit,1 Stage,12VDC,3000
PI_Asset_977662
PI_Asset_977663
PI_Asset_977664
PI_Asset_977665

#916123-1 | Pkg Qty: 1

$460.48 pkg | $460.48 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
MONARCH
Pack Quantity
1
Item
Hydraulic Power Unit
Shipping Weight
25.31 lb.
Mfr. Part Number
M-3326-0218
General
Built-In Features
Load Holding Check Valve and Adjustable Relief Valve
Mounting Orientation - Power Units
Horizontal or Vertical
Circuit Design
Single or Double Acting
Nominal Flow
2.5 gpm
Control Valve Configuration
Not Included
Power Source - Power Units
DC Power
Frame Design - Hydraulic Power Units
Compact
Pressure Port Thread Size
9/16"-18 (SAE 6)
HP
2.1 hp
Pump Stage
1
Hydraulic Pump Type
Gear
Pump Stage and Type
1 Stage Gear
Max. Pressure
3,000 psi
Return Port Thread Size
3/4"-16 (SAE 8)

Product Description

Specialty DC hydraulic units are used in applications where complex movement is required. In addition to double-acting control that provides precise control over raising and lowering, specialty power units provide additional control for more complex operations, such as the left/right angle adjustment required for a snow plow.

DC hydraulic power units (HPUs) are battery-operated and used to power tail-gate lifts, agricultural and marine equipment, dump trailers, and other portable hydraulic tools. They are smaller and more compact than AC power units and can be installed in hard-to-reach areas. DC hydraulic power units can be operated where access to a reliable electrical power source is limited or unavailable. They provide higher amounts of force than traditional electrical and mechanical systems, allowing hydraulic power units to lift and move heavier loads in a smaller footprint. DC hydraulic power units also provide precise movement and speed control over a wide range of speeds and load weights.
