MADISON

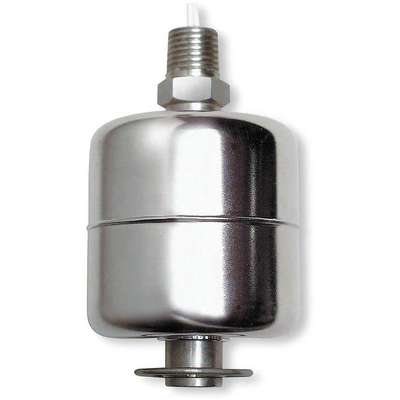

Madison Vertical Open Tank Liquid Level Switch, Selectable, Stainless Steel, 1/4" NPT

Hover over image to magnify
Lqd Lvl Swch,1/4 In Npt,
PI_Asset_928966
Lqd Lvl Swch,1/4 In Npt,
PI_Asset_928966

#916057-6 | Pkg Qty: 1

$71.46 pkg | $71.46 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
Stainless Steel
Mfr. Part Number
M5600
Brand
MADISON
Mounting
Vertical Open Tank
Conduit Size
1/4 in.
Mounts
Vertical
Contact Form
SPST
Operating Temperature Range
392 deg. F
Electrical Connections
22 ga. PTFE Coated 24 in. Leads
Operation
NO/NC
Fitting
1/4 in. NPT
Overall Length
3.38 in.
Float Diameter
2.13 in.
Shipping Weight
.25 lb.
Float Length
2.00 in.
Stem Length
2.63 in.
Float Material
Stainless Steel
Stem Material
Stainless Steel
Float Specific Gravity
0.55
Switch Function
Selectable
Height
3.52 in.
Tank Connection Size
1/4 in. NPT
Item
Liquid Level Switch
Type
Liquid Level
Maximum Current
0.50A
VA Rating
60
Maximum Pressure
200 psi
Width
2.13 in.
Maximum Temperature (Deg. C)
200
Wire Gauge
22 AWG
Maximum Voltage
240 V
Wire Lead
24
General
Operating Temp. Range
392°F Max
Standards
ABS, UL, CE, CSA, NSF, Explosion Proof

Product Description

This encapsulated, dependable, magnetically coupled, dry-reed switch delivers more than 5 million switching cycles at a rated electrical load. Use to control motor starters, contactors, solenoids, and relays.

Item Barcode
9160576
Lqd Lvl Swch,1/4 In Npt,
 NameItemDescription
Grainger DropshipGrainger Dropship2A551Lqd Lvl Swch, 1/4 In NPT,
UNSPSC CODESUNSPSC CODES39122219
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Lqd Lvl Swch, 1/4 In NPT,
