APOLLO

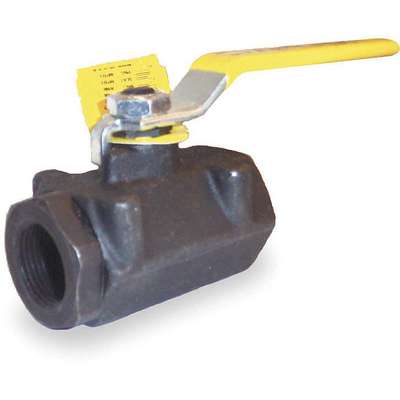

Ball Valve: 3/8 in Pipe Size, Std, 2,000 psi CWP Max. Pressure, 20° to 450°F, Lever Handle
Hover over image to magnify
#916033-5 | Pkg Qty: 1
$51.82 pkg | $51.82 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ball Valve Group
Manual
Mfr. Part Number
73A10201A
Ball Valve Item
Ball Valve
Overall Length
4.93 in.
Body Material
Carbon Steel
Package Quantity
1
Body Style
Inline
Port
Standard
Brand
APOLLO
Seal Material
RPTFE
Connection Type
FNPT x FNPT
Seat Material
RPTFE
For Pipe Size
3/8 in.
Shipping Weight
.75 lb.
General Connection Type
Female NPT
Stem Material
Carbon Steel Melonite
Handle Material
Zinc Plated Steel with Vinyl Grip
Stem Type
Blowout Proof
Handle Type
Lever
Temperature Range (Deg. F)
20 to 450 deg. F
Item
Ball Valve
Valve Style
2-Piece
Maximum Pressure
2000 psi CWP
General
Ball Valve Product Group
Manual
Standards
MSS-SP-110, A108
Body Seal Material
RPTFE
Valve Basic Body Material
Carbon Steel
Features
Forged Construction
Valve Structure
2-Piece
Max. Steam Pressure
150 psi WSP
Product Description
Apollo 2-Pc.
- Max. pressure: 2000 psi WOG (to 1"); 1500 psi WOG (1-1/4" and up); 150 psi WSP temperature range: -20° to 450°F
- Standard-port valves have RPTFE seats. Zinc-phosphate coating with chrome-plated ball, blowoutproof stem, and adjustable packing gland. For use with hydraulics, oils, and low-pressure steam.
- Meet MSS-SP-110.
- Low-Pressure Carbon Steel Ball Valves
- FNPT connections.
Expertly Selected Product Pairings
Item Barcode
Cs Fire Safe Ball Valve,Fnpt,3/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1CKK5 | CS Fire Safe Ball Valve, |
 | UNSPSC CODES | 40141607 | |
 | VMRS (ATA) CODES | 053-006-009 | CS Fire Safe Ball Valve, |
