BUSSMANN

10-Pole Automotive Fuse Block, AC: Not Rated, DC: 32VDC, 0 to 30A, Series ATC

Hover over image to magnify

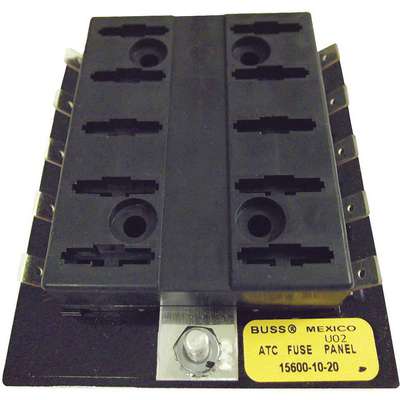

Fuse Panel, Atc,10 Pole
Fuse Panel, Atc,10 Pole

#916031-1 | Pkg Qty: 1

$93.47 pkg | $93.47 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
Not Rated
Fuse Size Length
1.6
Amp Range of Fuse Block or Holder
0 to 30A
Fuse Type
Automotive
Amperage Range
1-30 A
Fuse UL Class
Not Class Rated
Amps AC
30
Height
0.8 in.
Body Material
Thermoplastic
Item
Fuse Block
Brand
BUSSMANN
Length
3-3/4 in.
Color Family
Black
Maximum Amps
30
Connector Type
Wire Leads
Maximum Voltage
32 VDC
DC Voltage Rating
32 VDC
Mfr. Part Number
15600-10-20
Depth
0.4 in.
Mounting Style
Inline
For Fuse Series
ATC
Number of Poles
10
For Fuse Size
3/4 in. L x 3/4 in. W x 13/64 in. D
Pack Quantity
1
Fuse Block Design
Open
Series
15600
Fuse Block/Fuse Holder Type
Fuse Block
Shipping Weight
.2 lb.
Fuse Block/Holder AC Voltage Rating
Not Rated
Voltage Rating
32 VDC
Fuse Block/Holder DC Voltage Rating
32 VDC
Width
3.37 in.
Fuse Dimensions
49/64 in.L x 23/32 in.H x 13/64 in.W
Wire Range
16 to 12 AWG (output), 6 to 4 AWG (input)
Fuse Length
1.6 in.
General
Amp Range
0 to 30 A
Fuse Block or Fuse Holder Type
Fuse Block
Compatible Fuse Series
257, AF, ATC
Fuse Block or Holder DC Voltage Rating
32VDC
Fits Fuse Type
Automotive
Standards
UL Rated 94VO
For Use With
ATC
Visual Indication
Nonindicating
Fuse Block Style
Nonrejection

Product Description

These fuse blocks are compatible with standard, two-blade ATC automotive fuses, which are the most commonly used type of automotive fuse. They are a type of DC power-distribution module (PDM) for housing fuses to protect multiple vehicle or battery-powered equipment circuits.

Automotive and fleet fuses boxes hold fuses that provide overcurrent protection in DC-powered vehicles and equipment such as cars, forklifts, and battery-powered systems. They have an open top for access to fuses, clips or studs for securing fuses within the block, and terminals for connecting to the circuit.
