DAYTON

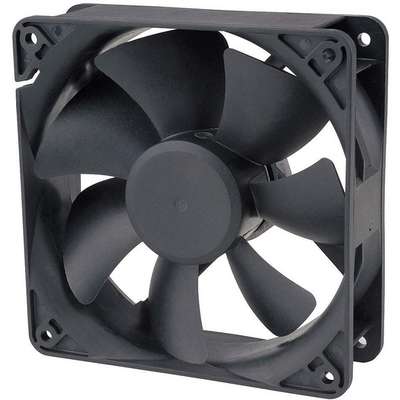

Wet-Location Square Axial Fan, 4 11/16" Height, 4 11/16" Width, 1 1/2" Depth, 12V DC

Hover over image to magnify
Axial Fan,12VDC,12In.Leads,
PI_Asset_1371337
Axial Fan,12VDC,12In.Leads,
PI_Asset_1371337

#916023-1 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Blade Material
Polybutylene Terephthalate PBT Plastic (UL94V-0)
Mounting Orientation
Vertical or Horizontal
Brand
DAYTON
Pack Quantity
1
Depth
1-1/2 in.
Shape
Square
Height
4-11/16 in.
Shipping Weight
.59 lb.
Item
Axial Fan
Voltage
12 VAC
Mfr. Part Number
31CC89
Width
4-11/16 in.
General
CFM @ 0.000-In. SP
93
Max. Ambient Temp.
158 Degrees F
Electrical Connection - Fans
Lead Wires
Mounting Eye O.C.
4 1/8 in
Environmental Applications
Equipment Cooling
Standards
UL Component Recognized for US and Canada
Fan Shape
Square

Product Description

Wet-location square axial fans are used for cooling equipment in enclosures that are exposed to wet conditions. Their motor is IP (Ingress Protection) rated to withstand water sprays and help keep out dust. These equipment-cooling fans have a square housing that can mount over a round cutout or fit into a square cutout for installation.

Square compact axial fans have a square-shaped housing that can span a round cutout or fit into a square cutout for cooling equipment within an enclosure. These equipment-cooling fans require minimal space for installation and are typically installed where there's full access for mounting them against the interior of an enclosure. They have mounting holes at each corner for securing them to a wall or panel.
