DAYTON

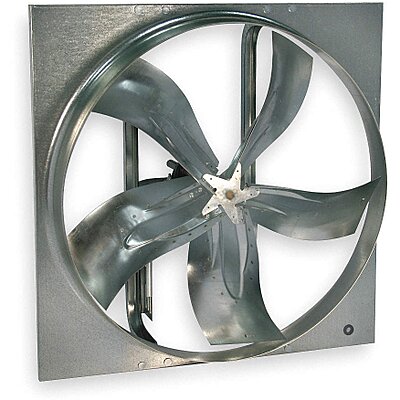

Dayton 48" Dia., Exhaust Fan with Drive Package, 115/208-230VACV, Open Dripproof

Hover over image to magnify
Med Duty Fan,22,617 Cfm,115/
PI_Asset_927149
PI_Asset_927150
Med Duty Fan,22,617 Cfm,115/
PI_Asset_927149
PI_Asset_927150
Dayton 48" Dia., Exhaust Fan with Drive Package, 115/208-230VACV, Open Dripproof Video

#915922-3 | Pkg Qty: 1

$2,533.12 pkg | $2,533.12 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
AMCA, UL, cUL
Motor HP
1
Assembled/Unassembled
Unassembled
Motor Type
Capacitor-Start
Bearing Type
Regreasable Pillow Block
Mounting Position
Horizontal or Vertical
Blade Diameter
48 in.
Number of Blades
5
Blade Material
Galvanized Steel
Package Quantity
1
Brand
DAYTON
Phase
1
Height
54 in.
Shaft Diameter
1-1/4 in.
Item
Medium Duty Exhaust Fan with Motor and Drive Package
Shipping Weight
283.6 lb.
Mfr. Part Number
7M833
Voltage
115/208-230
Motor Enclosure
Open Dripproof
Width
54 in.
General
Assembled
Unassembled
Maximum Inlet Temperature
104 Degrees F
Bearing Size
1 1/4 in
Maximum Noise Level
15 sones
Blade Finish
Galvanized
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 50 sones
Enclosure Design
Open Dripproof Motor
Motor Enclosure Design
Open Dripproof (ODP)
Exhaust Airflow @ 0.000 in SP
22,617 cfm
Motor Horsepower
1 hp
Exhaust Airflow @ 0.125 in SP
18,903 cfm
Motor Speed
1,725 RPM
Fan Style
Panel
Motor Speed Range
1601 to 1800 RPM
Fan Voltage
115/208-230V AC
Nameplate Voltage
115/208-230V AC
Flange Depth
2 in
Noise Level @ 0.000 in SP @ 5 ft
15 sones
For Cut-Out Height
50 1/2 in
Noise Level @ 0.125 in SP @ 5 ft
15 sones
For Cut-Out Length
50 1/2 in
Nominal Voltage
115/208-230V AC
For Cut-Out Width
50 1/2 in
Number of Fans
1
Full Load Current
13.6 A
Square Opening Required
Greater than 30 in
Includes
Drive Package
Vent Design
Ductless
Includes Motor
Yes
Ventilation Type
Exhaust
Manufacturer Warranty Length
1 yr
Venturi Depth
7 in
Maximum Airflow
22,617 cfm
Venturi Diameter
48 1/2 in
Maximum Exhaust Airflow @ 0.000 in SP
20,001 to 30,000 cfm

Product Description

Dayton® medium-duty belt-drive 48" exhaust fan is designed to be used in commercial and industrial applications that require high volumes of air at low static pressures. The fan features a 5-blade reinforced galvanized-steel propeller, heavy-duty drive-frame rails, and a 1-pc. motor/bearing plate. Variable pitch and an adjustable motor pulley optimize fan performance. Heavy-duty cast pillow block bearings are regreasable. Comes complete with a drive package, which includes the appropriate motor, belt, bushings and sheaves (all packed separately) to obtain the rated performance. Mount vertically for exhaust operation; horizontally for supply.

  •  Air handling-quality bearings meet a minimum of L10-100,000 hr.
  • UL and C-UL Listed
  •  Unassembled

Note: OSHA complying guards are required when a fan is installed within 8 ft. of floor, working level, or within reach of personnel; order No. 1WBU7. Review OSHA codes and UL standards.
