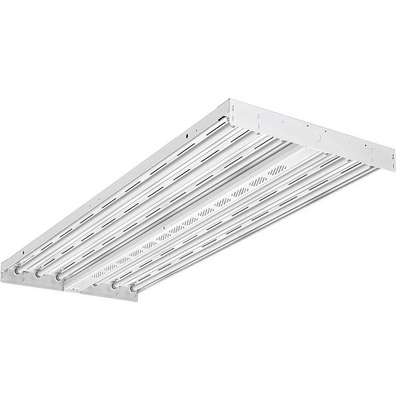

Acuity Lithonia 48-1/16" x 18-1/8" x 2-3/8" Linear High Bay with Narrow Light Distribution
Hover over image to magnify
#915753-5 | Pkg Qty: 1
$272.06 pkg
| $272.06 ea
Technical Specifications
Key Specifications
Ballast Type
Electronic Programmed Start
Length
48-1/16 in.
Brand
ACUITY LITHONIA
Mfr. Part Number
IBZT5 6L
Green Environmental
Product Contributes To Reducing Energy Consumption
Mounting
Surface or Stem
Height
2-3/8 in.
Number of Lamps
6
Housing Finish
High Gloss White Baked Enamel
Pack Quantity
1
Housing Material
Steel
Reflector Style
Miro4
Item
Fluorescent High Bay Fixture
Series
Ibz
Lamp Included
Yes
Shipping Weight
14.35 lb.
Lamp Type
T5
Voltage
120 to 277 VAC
Lamp Watts
54
Width
18-1/8 in.
General
Ambient Temp. Range
-4 Degrees to 131 Degrees F
Lighting Certification
Unrated
Ballast Start Type
Program Start
Max. Ambient Temp.
131 Degrees F
Bay Light Type
High Bay
Max. Fixture Wattage
324 W
Bulbs Included
Yes
Min. Ambient Temp.
-4 Degrees F
CA Title 24 Compliant
No
Nominal Size - Fixtures
2 ft x 4 ft
Emergency Battery Backup
No
Number of Bulbs
6
Fixture Type - High and Low Bay Fixtures
Linear High Bay
Number of Light Bars
6
Fixture Voltage
120 to 277
Overall Length
48 1/16 in
For Bulb Base Type
Bi-Pin
Overall Width
18 1/8 in
For Bulb Shape
Linear
Reflector Material
Aluminum
For Bulb Type
T5HO
Reflector Type
Apertured
Lamp Watts - Fixtures
54 W
Suggested Fixture Mounting Height
15 to 40 ft
Light Distribution
Narrow
Suggested Fixture Mounting Height Range
20 to 40 ft.
Product Description
These high bay lights hang from ceilings or open trusses at a suggested mounting height of 20 to 40 ft. from the floor or work surface.
Item Barcode
Fluorescent High Bay Fixture,
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 32JA06 | Fluorescent High Bay |
|
UNSPSC CODES | 39111501 | |
|
VMRS (ATA) CODES | 053-004-026 | Fluorescent High Bay |
