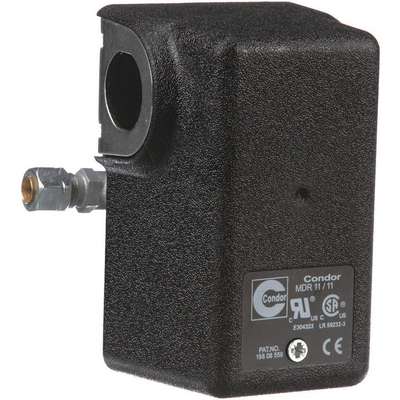

Air Compressor Pressure Switch; Range: 20 to 105 psi, Port Type: (1) Port, 1/4" FNPT

Zoom Icon

Air Compressor Pressure Switch; Range: 20 to 105 psi, Port Type: (1) Port, 1/4" FNPT

#915727-1 | Pkg Qty: 1
$29.50 pkg | $29.50 ea
Item Number 915727-1
Scanner Description Pressure Switch,Dpst,80/100
Inventory Status Drop Ship Item
Weight 0.8 lb
Brand CONDOR USA, INC

Technical Specifications

AC Contact Rating
26A @ 240V
NEMA Rating
1
Action
Standard
Number of Ports
1
Actuation Type
Diaphragm
Pack Quantity
1
Amperage - Electrical Supplies
26
Phase
Single
Amps
26
Port Type
1-Port 1/4 in. FNPT
Application
Air Compressor
Pressure Range (PSI)
20 to 105
Brand
CONDOR USA, INC
Pressure Switch Action
Standard
Burst Pressure
500 psi
Pressure Switch Application
Air Compressor
Contact Form
DPST
Pressure Switch Differential
20 to 45 psi
Contact Type
DPST
Pressure Switch Electrical Contact Form
DPST
Differential
20 to 45 psi
Pressure Switch Factory On/Off Setting
80/100 psi
Differential Pressure (PSI)
20 to 45
Pressure Switch Port Type
(1) Port, 1/4 in. FNPT
Enclosure
NEMA 1
Pressure Switch Range
20 to 105 psi
Factory On/Off Setting
80/100 psi
Pressure Switch Unloader
1/4 in. Compression
Factory On/Off Setting (PSI)
80 to 100
Range
20 to 105 psi
HP @ 1 Phase - 120V
2
Series
MDR11
HP @ 1 Phase - 230V
3
Special Features
4 kW/4 HP Switching Capacity, 11 Bar/160 psi Maximum Cut-Out Pressure
HP @ 1 Phase - 240V
3
Standards
UL Listed, CSA Certified
IP Rating
54
Temp. Range
-22° to 257°F
Item
Pressure Switch
Temp. Range (F)
-22 to 257
Manual Switch Action
None
Type
Air Compressor
Mfg Part Number
11EAXE
Unloader
1/4 in. Compression

Product Description

  • Item # 3EYN6
  • Mfr. Model # 11EAXE
  • UNSPSC # 39121506
  • Catalog Page # 398
  • Shipping Weight 0.8 lbs.
Country of Origin ChinaCountry of Origin is subject to change.

Item Barcode
9157271
  Name Item Description
Grainger Dropship Grainger Dropship 3EYN6 Pressure Switch,DPST,
UNSPSC CODES UNSPSC CODES 39122210
VMRS (ATA) CODES VMRS (ATA) CODES 053-005-013 Pressure Switch,DPST,
