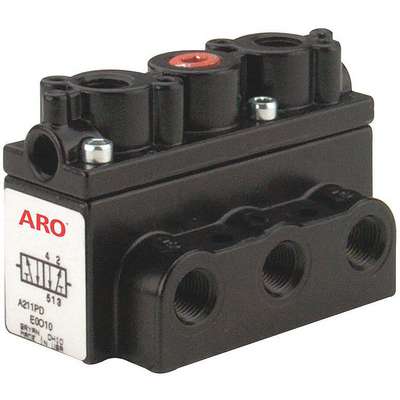

4-Way/2-Position Pilot Air Control Valve, Pilot / Spring, 1/4" Valve Port Size

Hover over image to magnify
Valve,Air,Pilot,1/4 In
Valve,Air,Pilot,1/4 In

#915681-5 | Pkg Qty: 1

$98.63 pkg | $98.63 ea
Item Number 915681-5
Scanner Description Valve,Air,Pilot,1/4 In
Inventory Status Drop Ship Item
Weight 0.96 lb
Brand ARO

Technical Specifications

Actuator/Return
Pilot/Spring
Number of Positions
2
Air Consumption
scfm
Pack Quantity
1
Brand
ARO
Port Size
1/4 in. in.
CFM
50
Type
Body Ported
Coefficient of Volume
1-1/2
Uses
For Air or Inert Gas
Cv
1-1/2
Vacuum
Rated to 29 In/Hg
Cycles per Minute
Up to 600
Valve Actuator/Return
Pilot / Spring
Item
Pilot Air Control Valve
Valve Port Size
1/4 in.
Maximum CFM
50
Valve Ways/Positions
4-Way/2-Position
Maximum Operating PSI
150
Width
1-15/16 in.
Mfr. Part Number
A212PS

Product Description

This ARO Alpha® compact air pilot directional valve is body ported and can be operated without the need for air line lubrication. Vacuum rated to 29 in./Hg (requires a Low Pressure Kit No. 4HN96, sold separately). Suitable for use with air or inert gas, and requires a NEMA 4 coil connector, sold separately. Note: When operating this valve below 50 psi, kit No. 4HN96 is required, sold separately.

Item Barcode
9156815
  Name Item Description
Grainger Dropship Grainger Dropship 2F973 Valve,Air, Pilot,1/4 In
UNSPSC CODES UNSPSC CODES 40141605
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Valve,Air, Pilot,1/4 In
