CHICAGO BLOWER

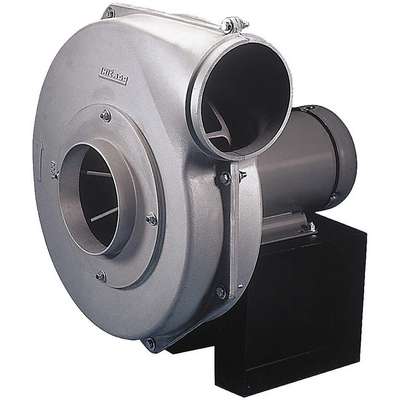

Chicago Blower High Pressure Blower, 2 hp Motor HP, Three Phase, 11 1/2" Wheel Dia. (In.)

Hover over image to magnify
High Pressure Blower,Radial
High Pressure Blower,Radial

#915619-2 | Pkg Qty: 1

$1,576.54 pkg | $1,576.54 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearing Type
Regreasable Ball
Phase
3
Brand
CHICAGO BLOWER
Rotation
CW
Item
High Pressure Blower
Shipping Weight
108 lb.
Mfr. Part Number
1000-2HP
Wheel Diameter
11-1/2 in.
Motor Enclosure
Totally Enclosed Fan-Cooled
Wheel Width
2-7/8 in.
Package Quantity
1
General
Blower RPM
3,500 RPM
Dimension N (In.)
1 in
CFM @ 1.000-In. SP
871
Dimension P (In.)
9 in
CFM @ 2.000-In. SP
813
Dimension R (In.)
9 7/16 in
CFM @ 3.000-In. SP
757
Dimension S (In.)
7 13/16 in
CFM @ 4.000-In. SP
698
Discharge Height (In.)
5 in
CFM @ 5.000-In. SP
636
Discharge Width (In.)
5 in
CFM @ 6.000-In. SP
571
Housing Height (In.)
18 1/4 in
CFM @ 7.000-In. SP
497
Housing Length (In.)
15 7/8 in
CFM @ 8.000-In. SP
402
Housing Width (In.)
4 1/2 in
Dimension B (In.)
1 in
Inlet Dia. (In.)
6 in
Dimension C (In.)
4 1/2 in
Max. Ambient Temp. (F)
120 Degrees F
Dimension D (In.)
9 3/8 in
Max. Blower RPM
3,600 RPM
Dimension E (In.)
3 7/16 in
Max. Inlet Temp. (Deg. F)
150 Degrees F
Dimension F (In.)
3 3/16 in
Motor HP Range
2
Dimension G (In.)
13 7/16 in
Wheel Dia. (In.)
11 1/2 in
Dimension H (In.)
14 3/4 in
Wheel Width (In.)
2 7/8 in
Dimension M (In.)
6 3/4 in
dBA @ 5 Feet
86 dBA

Product Description

High Pressure Blower, Radial Blade, Wheel Dia.11 1/2 in, Voltage 208/230/460, Motor HP 2 hp, CFM @ 1.000-In. SP 871, CFM @ 2.000-In. SP 813, CFM @ 3.000-In. SP 757, CFM @ 4.000-In. SP 698, CFM @ 5.000-In. SP 636, CFM @ 6.000-In. SP 571, CFM @ 7.000-In. SP 497, CFM @ 8.000-In. SP 402, 86 dBA @ 5 Feet, Max. Inlet Temp. (Deg. F) 150 Degrees F, Max. Ambient Temp. (F) 120 Degrees F, 3 Phase, 60 Hz, Full Load Amps 2.9/5.8, Motor Type Three Phase, Motor HP Range 2, Motor RPM 3,600 RPM
