IDEAL

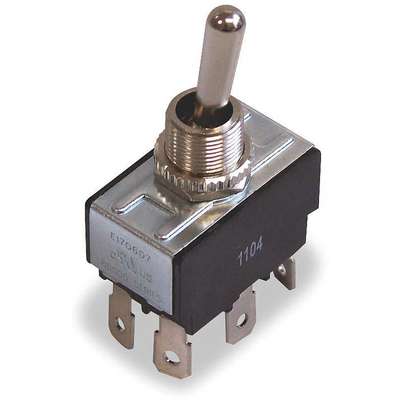

Ideal Toggle Switch, Number of Connections: 6, Switch Function: On/Off/On
#915584-5 | Pkg Qty: 1
$9.00 pkg | $9.00 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
20 A @ 125 VAC, 10 A @ 250 VAC
Number of Connections
6
Actuator Color
Silver
Operating Temperature Range
3 deg. F to 185 deg. F
Actuator Length
0.75 in.
Package Quantity
1
Actuator Style
Bat
Recommended Use
Power Tool and Motor Control Switch Applications
Brand
IDEAL
Shipping Weight
.1 lb.
Contact Form
DPDT
Stem Color
Silver
Contact Rating @ 125 V (Amps)
20
Stem Diameter
15/32-32 NS-2A
Contact Rating @ 250 V (Amps)
10
Stem Diameter/Thread Size
15/32-32 NS-2A
Horsepower
2002-01-01
Stem Length
1/2 in.
Item
Toggle Switch
Style
Bat
Mfr. Part Number
774003
Switch Function
On/Off/On
Mounting Hole
0.50 in. dia.
Terminals
Quick Connect
Mounting Type
Panel
Type
Maintained
General
HP
1 1/2 hp
Standards
UL Recognized/CSA
Operating Temp. Range
32° to 185°F
Stem Dia. and Thread Size
15/32-32 NS-2A
Special Features
Factory Tested 100,00 Cycles to 21A @ 14.8VDC
Product Description
The IDEAL® toggle switch is great for power tool and motor control switch applications. Heavy-duty toggle features rugged, long-wearing solid brass/nickel-plated bushings.
