LEGRIS

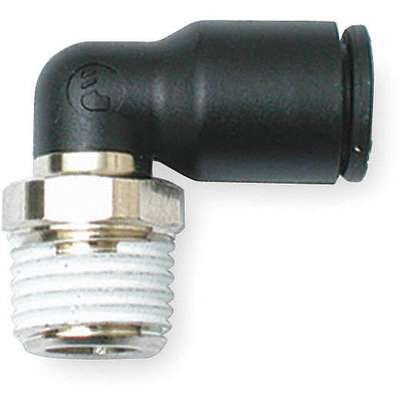

Elbow: Nylon, Push-to-Connect x MNPT, For 10 mm Tube OD, 3/8 in Pipe Size, Black, 10 PK

Hover over image to magnify
Male Elbow,Thread Size 3/8 In
Male Elbow,Thread Size 3/8 In
Elbow: Nylon, Push-to-Connect x MNPT, For 10 mm Tube OD, 3/8 in Pipe Size, Black, 10 PK Video

#915511-7 | Pkg Qty: 10

$184.00 pkg | $18.40 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Basic Material
Plastic/Metal Combination
Mfr. Part Number
3109 10 18
Body Material
Glass Filled Nylon and Nickel Plated Brass
Package Quantity
10
Brand
LEGRIS
Pipe Size
3/8 in.
Color Family
Black
Pneumatics Fittings Sub-Category
Elbows
Connection Type
Tube x MNPT
Shipping Weight
.54 lb.
Item
Elbow, 90°
Tube Size
10 mm
Material of Construction
Glass Filled Nylon And Nickel Plated Brass
Type
90°
Maximum Pressure
290 psi
General
Compatible Tube Hardness
95 Shore A
Includes Pre-Applied Thread Sealant
Yes
End Connection Type
Push-to-Connect, Threaded
Metal Detectable
Yes
Fitting Pipe Size
3/8 in
Pipe Size - Pipe Fitting
3/8 in
Fitting Side A Connection Type
Push-to-Connect
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Fitting Side A Tube Outer Diameter
10 mm
Special Features
With Thread Sealant
Fitting Side B Connection Type
MNPT
Specific Fitting Shape
90° Elbow Adapter
Fitting Side B Pipe Size
3/8 in

Product Description

Glass-Filled Nylon Push-To-Connect Fittings

  • Max. operating pressure: 290 psi Temp. range: -4° to 175°F Pkg. qty.: 10, unless otherwise noted Stainless steel gripping ring provides a secure, leak-free connection without tools; disconnects easily with the plastic release button. All threaded elbows, tees, and Y's swivel around the threaded, nickel-plated base for easy installation. Fitting bodies are a composite material—nylon and nickel-plated brass. Thread sealant is preapplied to all tapered threads. Buna N elastomer seals. Can be used with all pneumatic machines, as well as for food-processing, packaging equipment, textile machinery, robotics, and semiconductor applications. Use with semirigid nylon, flexible polyurethane, polyethylene, and PTFE tubing.
