LENOX

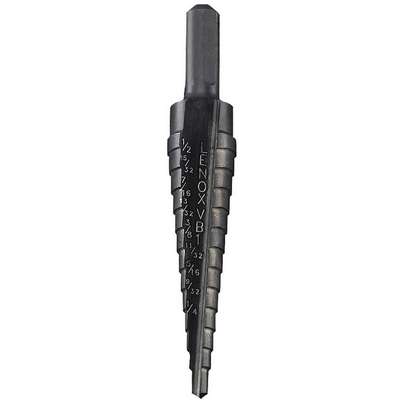

Three-Flat Step Drill Bit, High Speed Steel, 13 Hole Sizes, 1/32" Step Thickness

Hover over image to magnify
Hss Step Drill Bit,1/8-1/2 In,
PI_Asset_965293
PI_Asset_965294
PI_Asset_977388
Hss Step Drill Bit,1/8-1/2 In,
PI_Asset_965293
PI_Asset_965294
PI_Asset_977388

#915481-2 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Tin Coated Step Drill 1/8-1/2
$43.17 pkg | $43.17 ea
Item: 910767-3
Pkg Qty: 1
Tin Coated Step Drill 3/16-1/2
$53.19 pkg | $53.19 ea
Item: 910767-4
Pkg Qty: 1

Technical Specifications

Key Specifications
Bit Length
3 in.
Minimum Hole Size
1/8 in.
Brand
LENOX
Number Hole Sizes
13
Cutting Direction
Right
Number of Flutes
2
Cutting Direction
Right Hand
Overall Length
3 in.
Drill Bit Finish
Steam Oxide
Pack Quantity
1
Drill Bit Material
High Speed Steel
Series
VARI-BIT
Drill Bit Shank Shape
3-Flat
Shank Diameter
1/4 in.
Impact Rated
No
Shank Hex Size
1/4 in.
Item
Step Drill Bit
Shipping Weight
.1 lb.
Maximum Drilling Depth
1 in.
Size Range
1/8 to 1/2 in.
Maximum Hole Size
1/2 in.
Sizes Included
1/8 in., 5/32 in., 3/16 in., 7/32 in., 1/4 in., 9/32 in., 5/16 in., 11/32 in., 3/8 in., 13/32 in., 7/16 in., 15/32 in., 1/2 in.
Mfr. Part Number
30881VB1
Step Thickness
1/32 in.
General
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Split Point
Shank Type - Machining
Hex
Finish - Machining
Black Oxide
Step Increments
1/32 in
Material - Machining
High Speed Steel

Product Description

The shanks on these step drill bits have three flats that help prevent the bits from slipping in the drill chuck during drilling. These cone-shaped bits have steps of increasing diameter marked along their cutting head. As each bit is pushed into a piece of sheet metal or other thin material, each step on the bit widens the hole. The bits also have a self-starting split point that prevents the bits from moving, or walking, when starting to drill, which eliminates the need for using a center drill to create a starter hole before drilling.
