PARKER

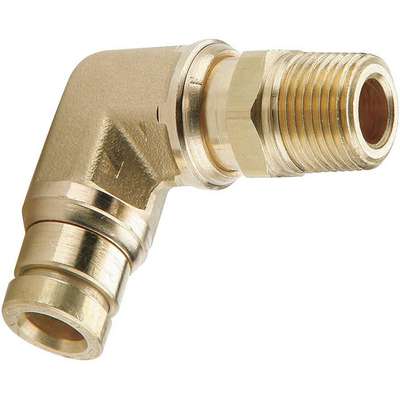

DOT Approved Tube x MNPT Brass Air Brake Push-To-Connect Male Elbow, 90 deg., 3/8 in. Tube OD x 1/4 in. Pipe Thread

Hover over image to magnify
90Deg Swivel Male Elbow,3/8 In
PI_Asset_1027148
90Deg Swivel Male Elbow,3/8 In
PI_Asset_1027148

#915333-9 | Pkg Qty: 1

$25.17 pkg | $25.17 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Angle
90 deg.
Material
Brass
Brand
PARKER
Meets Standards
SAEJ2494, DOT FMVSS 571.106
Brass DOT Push-to-Connect Fittings Type
Elbows
Mfr. Part Number
169PTC-6-4
Connection
Tube x MNPT
Package Quantity
1
Connection Type
Male
Pipe Thread
1/4 in.
DOT Approved
Yes
Shipping Weight
.15 lb.
Fitting Style
Swivel
Temperature Range
-40 deg. F to 200 deg. F
Fitting Type
Push-To-Connect
Tube Outside Diameter
3/8 in.
Gasket Material
Buna N
Working Pressure
250 psi
Hex Size
11/16 in.
General
Application
Air
Fitting Side B Pipe Size
1/4 in
End Connection Type
Push-to-Connect, Threaded
Overall Length
1 1/32 in
Fitting Shape
Elbow
Release Type
Button
Fitting Side A Connection Type
Push-to-Connect
Resistance Properties
Impact-Resistant
Fitting Side A Tube Outer Diameter
3/8 in
Specific Fitting Shape
90 Degrees Swivel Elbow Adapter
Fitting Side B Connection Type
MNPT
System of Measurement
Imperial

Product Description

Reduce assembly time by as much as 90% compared to compression-style fittings. Parker 1-pc. Push-to-Connect Connector provides a quick way to easily assemble nylon truck and trailer air brake assemblies. Suitable for use on all brake systems, except for where temperatures exceed 200°F or where battery acid can drip on tubing. Not for fuel, water, or oil.
