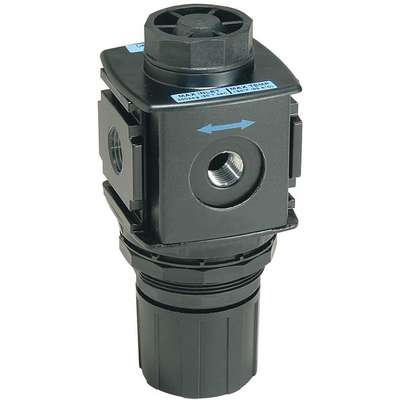

1/4" General Purpose Air Regulator , 65 cfm Max. Flow - Regulators

Zoom Icon

#915186-5 | Pkg Qty: 1

$47.40 pkg | $47.40 ea
Item Number 915186-5
Scanner Description Air Regulator,1/4 In. NPT,65
Inventory Status Drop Ship Item
Weight 1.6 lb
Brand WILKERSON

Technical Specifications

Adjustment
0 to 125 psi
Maximum Temperature
150°F
Adjustment Knob
Non Rising Locking
Mfg Part Number
R18-02-F000
Air Consumption
scfm
NPT
1/4 in.
Brand
WILKERSON
Overall Height
5.4 in.
Item
General Purpose Air Regulator
Overall Height-Regulators
5.4 in.
Max. Flow
65 cfm
Overall Width
2.36 in.
Max. Flow - Regulators
65 cfm
Overall Width-Regulators
2.36 in.
Max. Inlet Pressure
300 psi
Pack Quantity
1
Max. Temp. (F)
150
Pipe Size
1/4 in.
Max. Temp. - Regulators
150°F
Series
Compact
Maximum Pressure
300 psi
Type
Modular

Product Description

The 2-gauge ports can be used as additional regulated outlet ports. Regulator can be serviced without removal from air line. For the Max. Flow, the CFM is measured with 100 psig inlet adjusted to a set pressure of 90 psig and a 15 psig pressure drop. For the Adjustment Range, the working range of knob adjustment is designed to permit outlet pressures within their full range. Pressure adjustment beyond this range is also possible because the knob is not a limiting device. This is a common characteristic of most industrial regulators, and limiting devices may be obtained only by special design. WARNING: Do not connect regulator to bottled gas.

Item Barcode
9151865
  Name Item Description
Grainger Dropship Grainger Dropship 6B213 Air Regulator,1/
UNSPSC CODES UNSPSC CODES 27131603
VMRS (ATA) CODES VMRS (ATA) CODES 043-004-056 Air Regulator,1/

For more product information by email, click here
