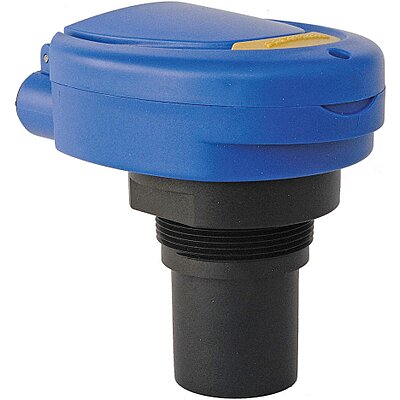

Polycarbonate Noncontact Ultrasonic Level Sensor, 18 ft. Range

Zoom Icon
#915119-9 | Pkg Qty: 1
$794.00 pkg | $794.00 ea
Item Number 915119-9
Scanner Description Ultrasonic Level Sensor,18.0 Ft
Inventory Status Drop Ship Item
Weight 1.9 lb
Brand FLOWLINE

Technical Specifications

Action
A
Length
5.2 in.
Beam Width
3 in.
Material
PVDF
Brand
FLOWLINE
Max. Pressure
30 psi
Classification
General Purpose
Mounting
2 in. NPT
Configuration
Push Button
Output
(3) SPDT Relays
Dead Band
8 in.
Overall Length
5.2 in.
Display
LCD, 6-digit
Pack Quantity
1
Enclosure Material
Polycarbonate
Range
18 ft.
Enclosure Rating
NEMA 4X (IP65)
Standards
CE, RoHS
Gasket Material
Viton
Temperature Range
-4 to 140 deg. F
Height
5-1/2 in.
Type
Level Switch & Controller
Input Voltage
95-250 VAC
Width
4.1 in.
Item
Noncontact Ultrasonic Level Sensor

Product Description

Flowline® EchoSwitch® general-purpose, noncontact ultrasonic level sensor provides continuous noncontact level detection up to 26.2 ft. (8m), with 3 programmable relays for level switch or control functions and 4-20mA signal output. The sensor is programmed by an integrated push-button display module. Relay can be configured on a single set point (high or low level alarm) or latched on 2 set points for automatic fill/empty in simplex (1 pump or valve), duplex (2 pumps), or triplex (3 pumps) level control modes with selectable time delay and fail-safe logic. Embedded level controller can reduce costs by replacing external control hardware. Noncontact sensor is excellent for corrosive, sticky, or dirty liquids, and is broadly selected for pump lift station, sump, and dry tank level applications.
