BUSSMANN

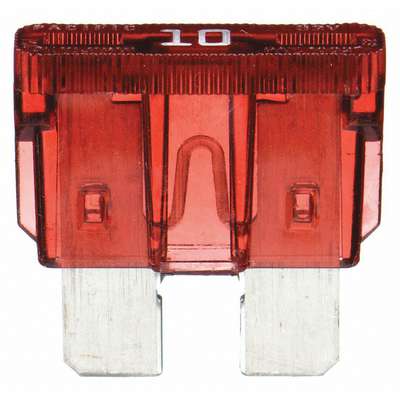

10A Fast Acting, Nonindicating Plastic Fuse with 32VDC Voltage Rating; ATC Series, Red

Hover over image to magnify
Fuse,10A,Nonindicating,Atc,
Fuse,10A,Nonindicating,Atc,

#915064-6 | Pkg Qty: 5

$8.95 pkg | $1.79 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
Not Rated
Indicating / Nonindicating
Nonindicating
Amperage
10 A
Interrupt Rating
1kA at 32 VDC
Body Material
Plastic
Interrupting Rating
1kA at 32VDC
Body Style
Blade
Item
Fuse
Brand
BUSSMANN
Length
3/4 in.
Color Code
Red
Meets Standards
UL Recognized Guide JFHR2, File E56412
Color Family
Red
Mfr. Part Number
ATC-10
DC Voltage Rating
32 VDC
Pack Quantity
5
Depth
7/32 in.
Rejection / Nonrejection
Nonrejection
Element
Single
Series
Atc
Functionally Equal To
Mersen/Ferraz Shawmut AF, Littelfuse 257, ATO
Shipping Weight
.05 lb.
Fuse Amps
10A
Speed
Fast Acting
Fuse Speed
Fast Acting
Type
Automotive
Fuse Type
Automotive
Voltage Rating
32 VDC
Fuse Voltage Rating
32 VDC
Width
3/4 in.
Indicating
No
General
Compatible Fuse Block Series
15600, ATC, BP, HHC, HHD, HHF, HHG
Fuse Size
3/4 in L x 3/4 in W x 13/64 in D
Equivalent Series
257, AF, ATC
Visual Indication
Nonindicating
Fits Fuse Block Style
Nonrejection

Product Description

Nonindicating automotive blade fuses open within seconds of being exposed to overloads and short circuits. They have no indicator for identifying a blown fuse, so they're sometimes used with an indicating fuse block or cover.

Automotive blade fuses are the most commonly used type of automotive fuse for protecting electrical systems and components against overcurrent. These 32VDC plug-in style fuses have a plastic housing with two blade-style contacts that fit into compatible fuse block or holder. Their housing is usually color-coded by amperage rating to help prevent installation of a mismatched fuse. The housing is also transparent for checking whether the fuse element is intact or has melted.
