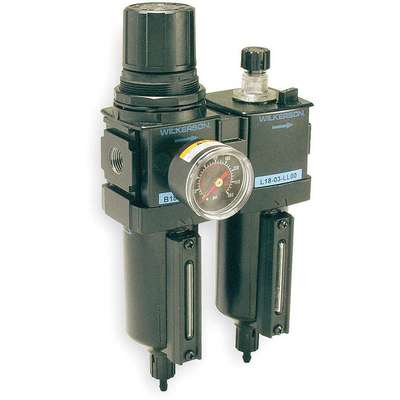

1/2" NPT Filter/Regulator/Lubricator with 0 to 125 psi Adjustment Range

1/2" NPT Filter/Regulator/Lubricator with 0 to 125 psi Adjustment Range

#914908-6 | Pkg Qty: 1

$145.50 pkg | $145.50 ea
Item Number 914908-6
Scanner Description Filter/Regulator/Lubricator,1/
Inventory Status Drop Ship Item
Weight 5.65 lb
Brand WILKERSON

Technical Specifications

Adjustment
0 to 125 psi
Maximum Temperature
150°F
Adjustment Knob
Non Rising
Mfr. Part Number
D18-04-FLG0
Air Consumption
scfm
NPT
1/2 in.
Bowl Material
Metal with Sight Glass
Number of Pieces
2
Brand
WILKERSON
Overall Height
10 in.
Drain Type
Manual
Overall Width
5.06 in.
Filter Rating
5 micron
Pack Quantity
1
Item
Filter/Regulator/Lubricator
Pipe Size
1/2 in. NPT
Max. Flow
65 cfm
Series
18
Max. Flow (CFM)
65 CFM
Type
2 Piece Modular Combination
Max. Temp. (F)
150
Width
5.06 in.
Maximum Pressure
250 psi

Product Description

The 2-pc. design integrates filter/regulator and lubricator into a single unit. The ready-to-mount assembly comes with a pressure gauge and modulator T-bracket/joiner assembly. For the Max. Flow, the CFM is measured with 100 psig inlet adjusted to a set pressure of 90 psig and a 15 psig pressure drop. Note: Unit should not be located in areas subject to direct sunlight, direct impact, or temperatures outside rated range. Incompatible with chlorinated hydrocarbons, ketones, esters, and certain alcohols. Not for use in air systems where compressors are lubricated with fire-resistant fluids such as phosphate ester or diester. Should not be used where strong acids or bases are present or in salt-laden atmospheres.
