PARKER

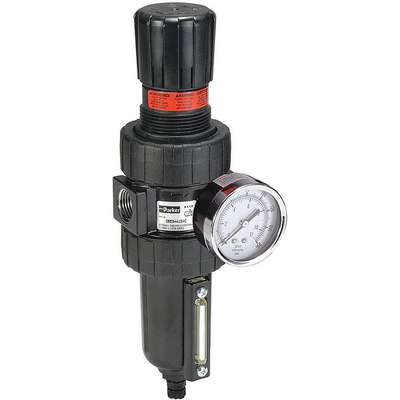

Filter-Regulator: 1/2 in NPT, 61 cfm, 5 micron, 250 psi Max Op Pressure, Manual Drain, Zinc

Hover over image to magnify
Filter/Regulator,10.38 In. H,2.
PI_Asset_1368615
Filter/Regulator,10.38 In. H,2.
PI_Asset_1368615

#914825-3 | Pkg Qty: 1

$243.43 pkg | $243.43 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Adjustment
0 to 125 psi
Maximum Temperature
175 deg. F
Adjustment Knob
Non Rising
Maximum Temperature (Deg. F)
175
Air Consumption
scfm
Mfr. Part Number
06E34B18AC
Bowl Material
Die Cast Zinc
NPT
1/2 in.
Brand
PARKER
Overall Height
10.38 in.
Drain Type
Manual
Overall Width
2.81 in.
Filter Rating
5 micron
Package Quantity
1
Item
Filter/Regulator
Pipe Size
1/2 in. NPT
Maximum Flow
61 cfm
Shipping Weight
3.2 lb.
Maximum Flow (CFM)
61 CFM
Type
1 Piece
Maximum Pressure
250 psi
Width
2.81 in.
General
Adjustment Mechanism
Knob
For Substance Type
Air, Gas
Adjustment Mechanism Material
Plastic
Gauge Port Size
1/4 in
Adjustment Range
0 a 125 psi
Includes
Metal Bowl with Sight Gauge
Adjustment Range - Air Treatment
0 to 125 psi
Max. Flow - Air Treatment
61 cfm
Air Inlet Type
NPT
Max. Flow Range - Air Treatment
61 to 70 cfm
Air Outlet Size
1/2 in
Max. Incoming Pressure - Air Treatment
250 psi
Air Outlet Type
NPT
Maximum Flow @ 100 psi
61 scfm
Bowl Material - Air Treatment
Zinc
Modular Connection
Modular Connection
Bowl Size - Air Treatment
4.4 oz
Number of Air Inlets
1
Connection Size - Air Treatment
1/2 in NPT
Number of Air Outlets
1
Differential Pressure Indicator Included
Yes
Pressure Drop
10 psi
Drain Part Compatibility
PS512P
Pressure Gauge Included
Yes
Filter Bowl Capacity
4.4 oz
Pressure Gauge Port Size
1/4 in
Filter Bowl Material
Metal
Regulator Type
Relieving
Filter Rating (Microns)
5
Sight Gauge Included
Yes
Filter Rating - Air Treatment
5 micron
Size - Air Treatment
Compact
For Fluid Type
Air, Gas
System Location
Air Line
For Removal Of
Particles, Water

Product Description

Note: Product rupture can cause serious injury. Do not connect regulator to bottled gas. Should not be used where strong acids or bases are present or in salt-laden atmospheres.
